MK484 Radio with Loudspeaker

Published:2012/11/23 0:45:00 Author:muriel | Keyword: MK484, Radio, Loudspeaker | From:SeekIC

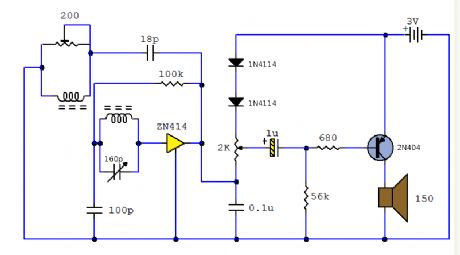

A complete AM radio set based on the MK484 IC (formerly ZN414). It uses a PNP transistor and can drive a 150R loudspeaker.
