MINIATURE_WIDEBAND_AMPLIFIER

Published:2009/6/17 23:39:00 Author:May | From:SeekIC

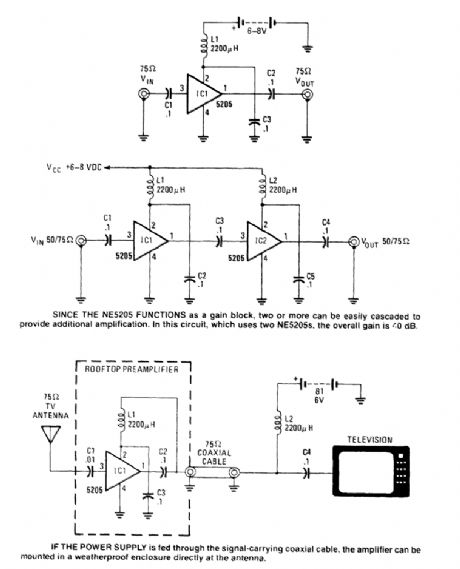

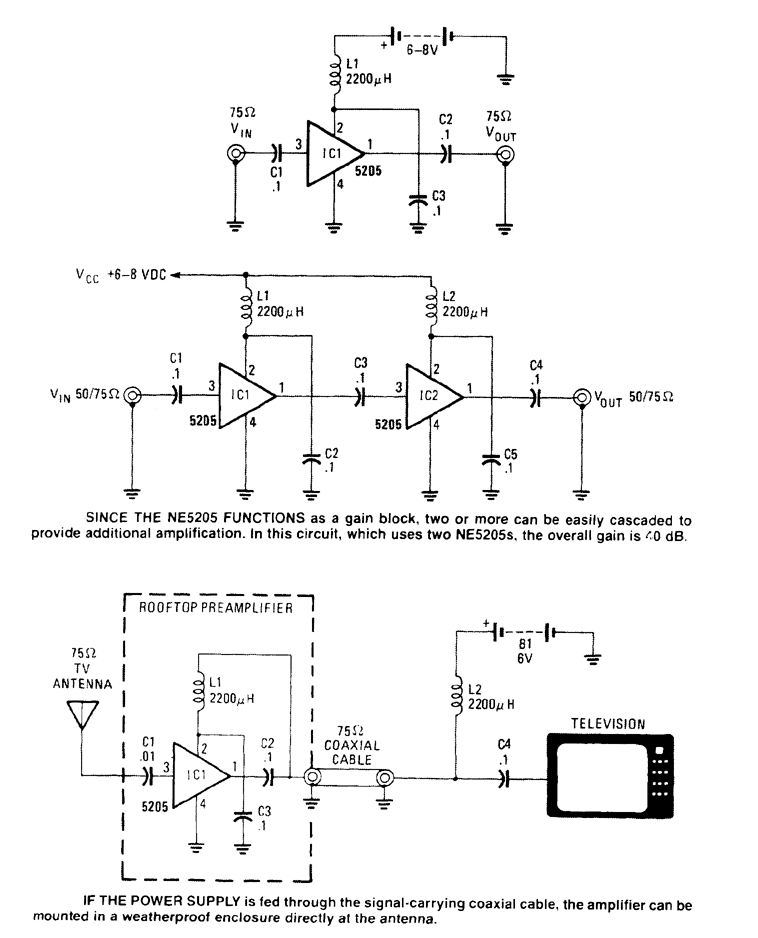

Except for the coupling and decoupling capacitors, IC1 is a complete wideband amplifier that has a fixed gain of 20 dB to 450 MHz. No external compensation is required.
