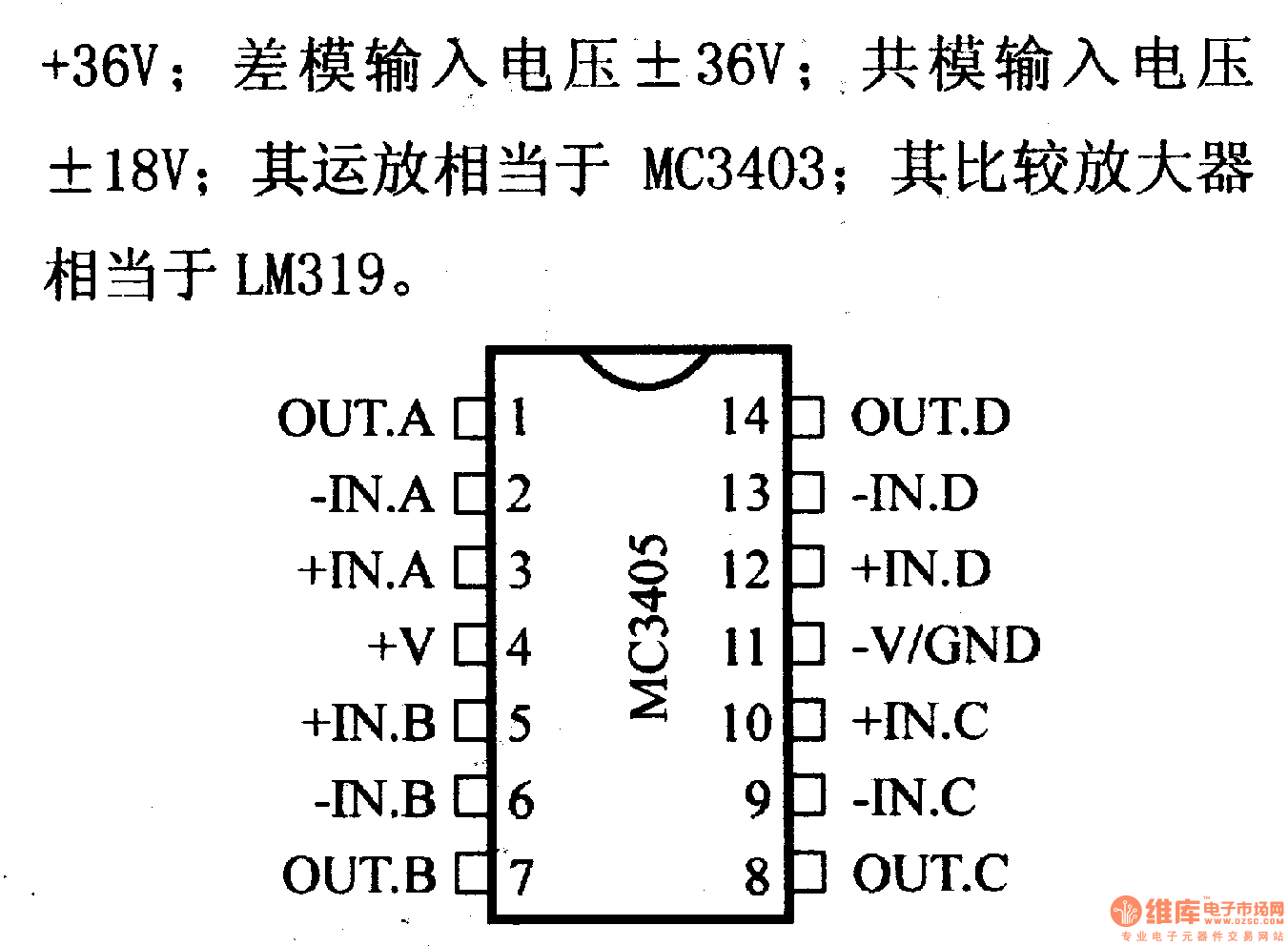

MC3405 quad operational amplifier and its pin main characteristics

Published:2012/12/28 0:25:00 Author:Ecco | Keyword: quad operational amplifier, pin main characteristics | From:SeekIC

± 18V power supply; +3 ~ +36 V single-supply operating voltage; ± 36V differential-mode input voltage; ± 18V common-mode input voltage; it is equivalent to MC3403 op amp; its comparison amplifier is equivalent to LM319.
