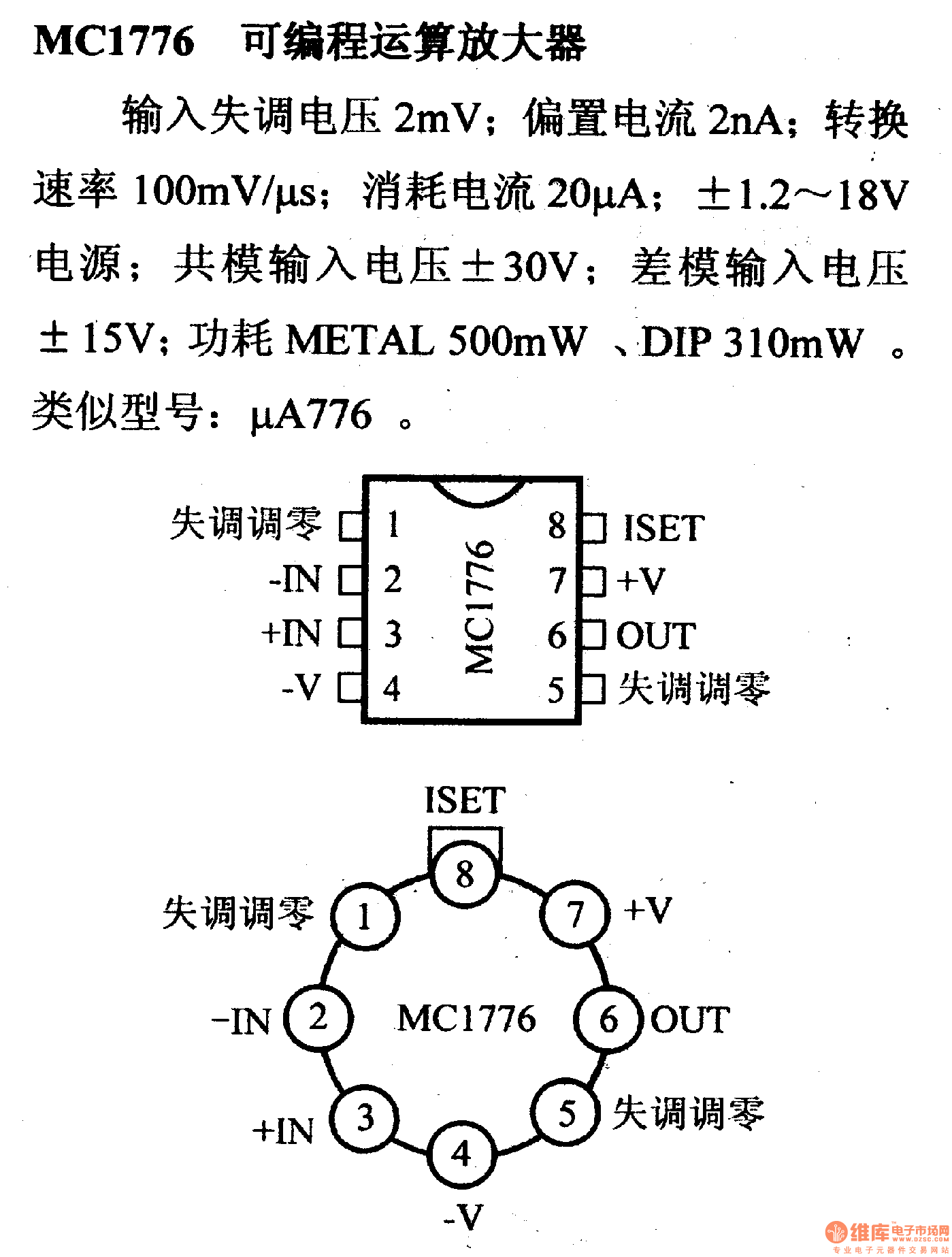

MC1776 programmable op amp and its pin main characteristics

Published:2012/12/25 1:31:00 Author:Ecco | Keyword: programmable op amp , pin main characteristics | From:SeekIC

2mV input offset voltage; 2nA bias current; 100mV/μs conversion rate; 20μA current consumption; ± 1.2 to 18V power supply; ± 30V common-mode input voltage; ± 15V differential-mode input voltage; 500mW METAL and 310mW DIP power consumption. Similar model: μA776.
