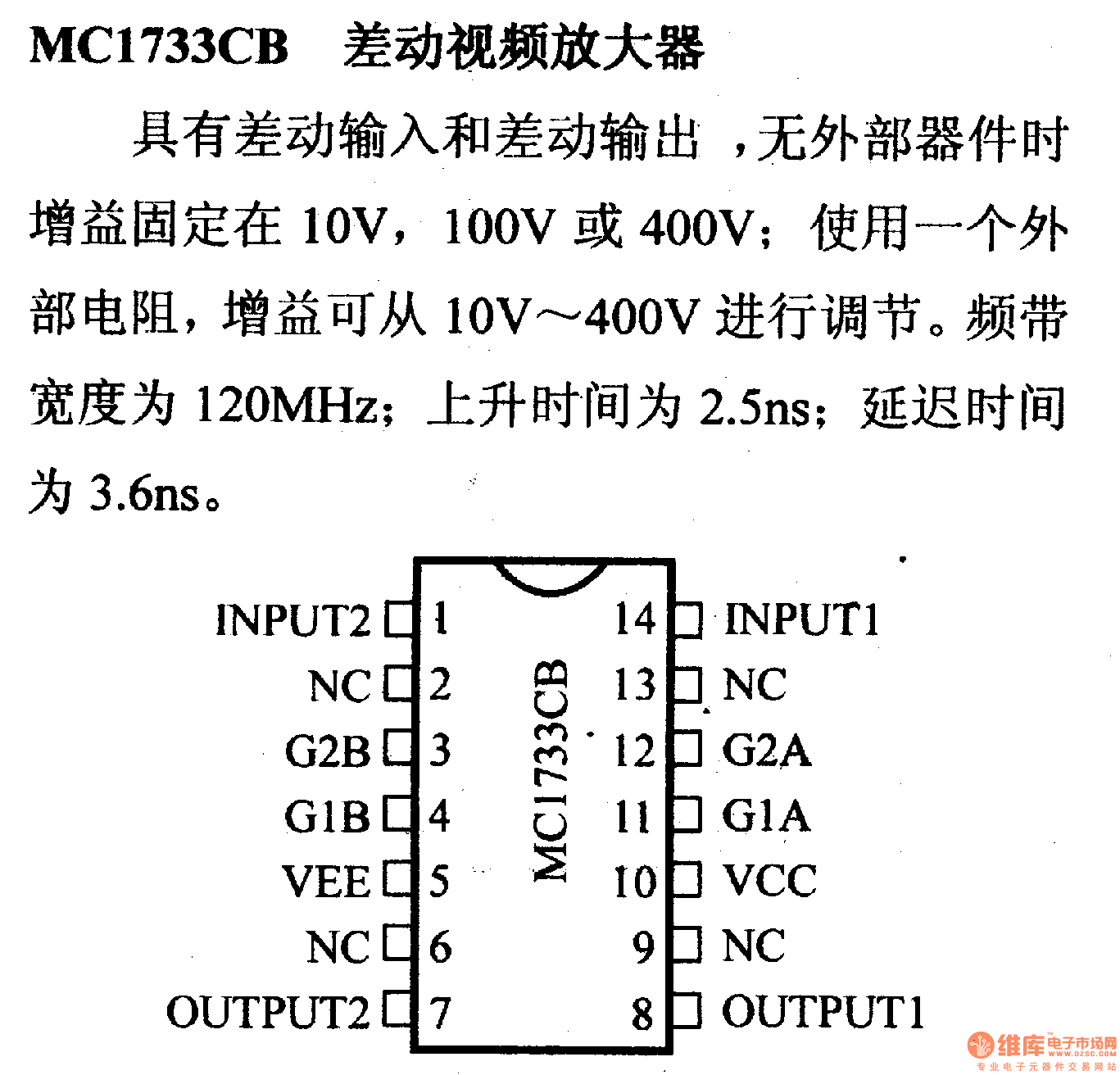

MC1733CB differential video amplifier and its pin main characteristics

Published:2013/1/15 1:57:00 Author:Ecco | Keyword: differential video amplifier , pin main characteristics | From:SeekIC

It has a differential input and differential output, and the gain is fixed in 10V, 100V and 400V when it has no external devices. It can use an external resistor to adjust gain in the range of10V ~ 400V; Bandwidth is 120MHz; rise time is 2.5ns; delay time is 3.6ns.
