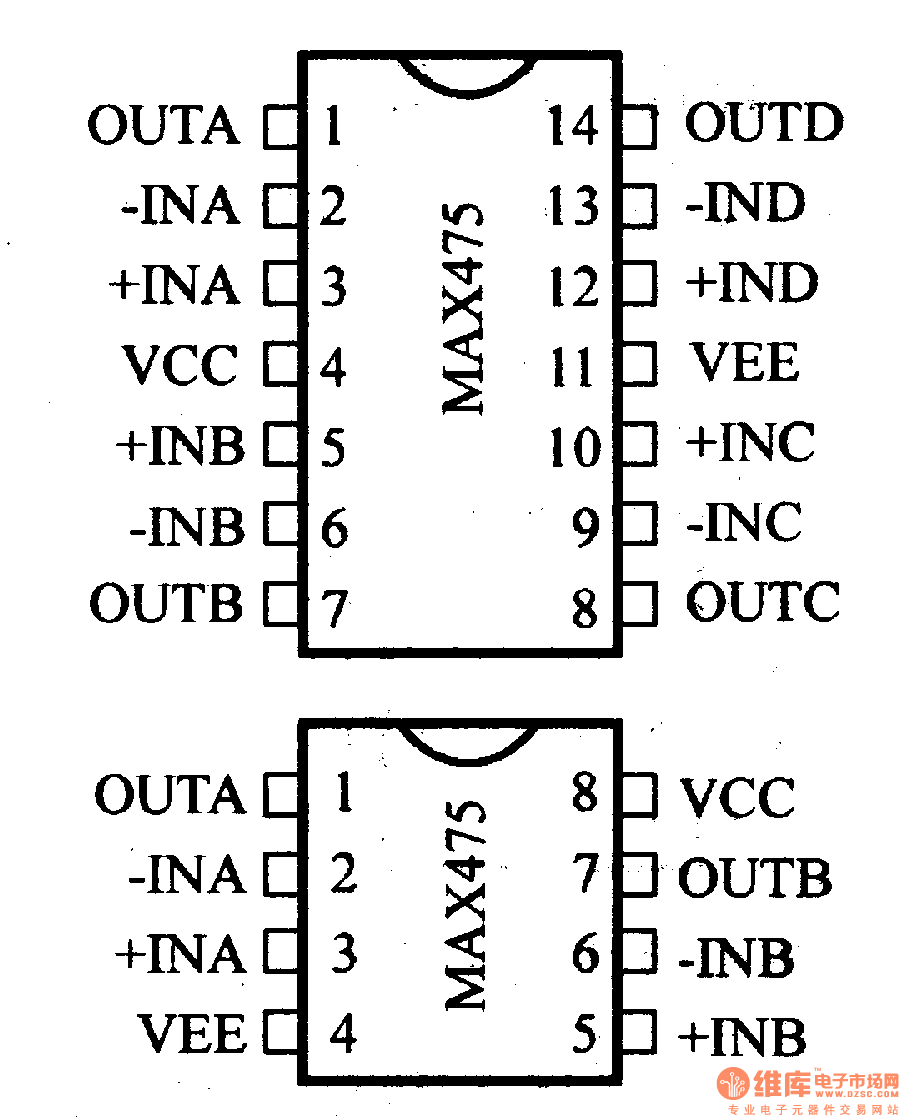

MAX475 op amp and its pin main features

Published:2013/1/17 1:43:00 Author:Ecco | Keyword: op amp, pin main features | From:SeekIC

Operating voltage range is 2.7 to 5.25V; conversion rate is 15V/μs; unity gain bandwidth is 10MHz; each op amp supply current is 2mA; output swing is ± 50mV; CMRR = 90dB; PSRR = 90dB.
