MATRIX_READOUT

Published:2009/7/12 20:54:00 Author:May | From:SeekIC

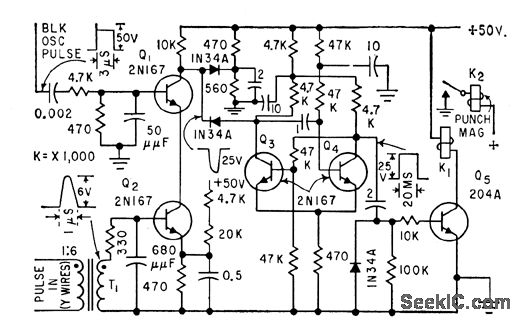

Used for data reduction in telephone traffic data recorder system to permit recording all information on a call as one entry. Coincidence circuit Q1-Q2 provides reliable sensing of matrix output in presence of noise generated by rotary switches and relays.-J. W. Blonchard, E. C. Bellee, and J. Smith, Ferrite Memories Simplify Telephone Data Analysis, Electronics, 32:41, p 68-70.
