MAGNETIC_CARTRIDGE_PREAMP_1

Published:2009/7/6 1:27:00 Author:May | From:SeekIC

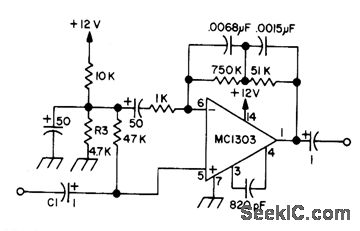

Uses dual opamp for stereo, other half of which is connected exactly the same but with connections to pin numbers changed to those in parentheses: 6(5), 5(8), 3(11), 4(10), and 1(13).-Circuits, 73 Magazine, Sept. 1973, p 143.
