MAGAMPS_CONTROL_SCR_BRIDGE

Published:2009/7/17 1:27:00 Author:Jessie | From:SeekIC

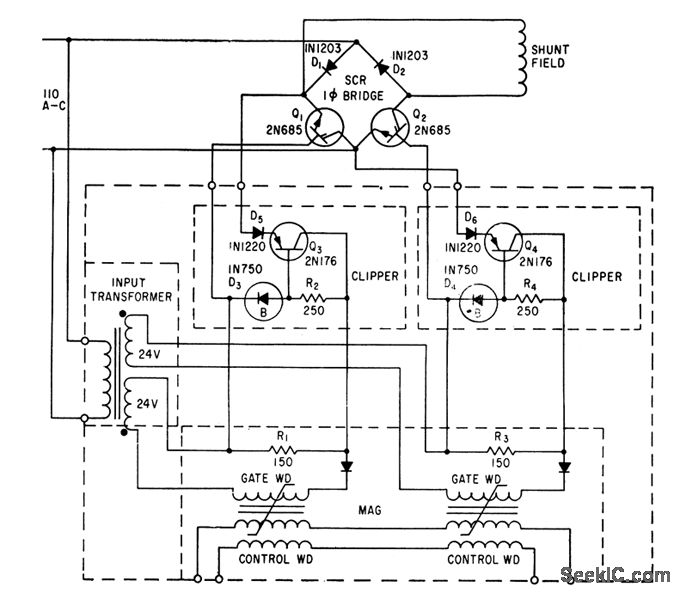

Single-phase bridge is controlled by two half-wave magnetic amplifiers each having a transistor emitter-follower used as clipper for each half-wave voltage output. Used for adjustable d-c field supply.-T. E. DeViney, Semiconductors Improve Reliability of Steel-Mill Control Equipment, Electronics, 34:23, p104-107.
