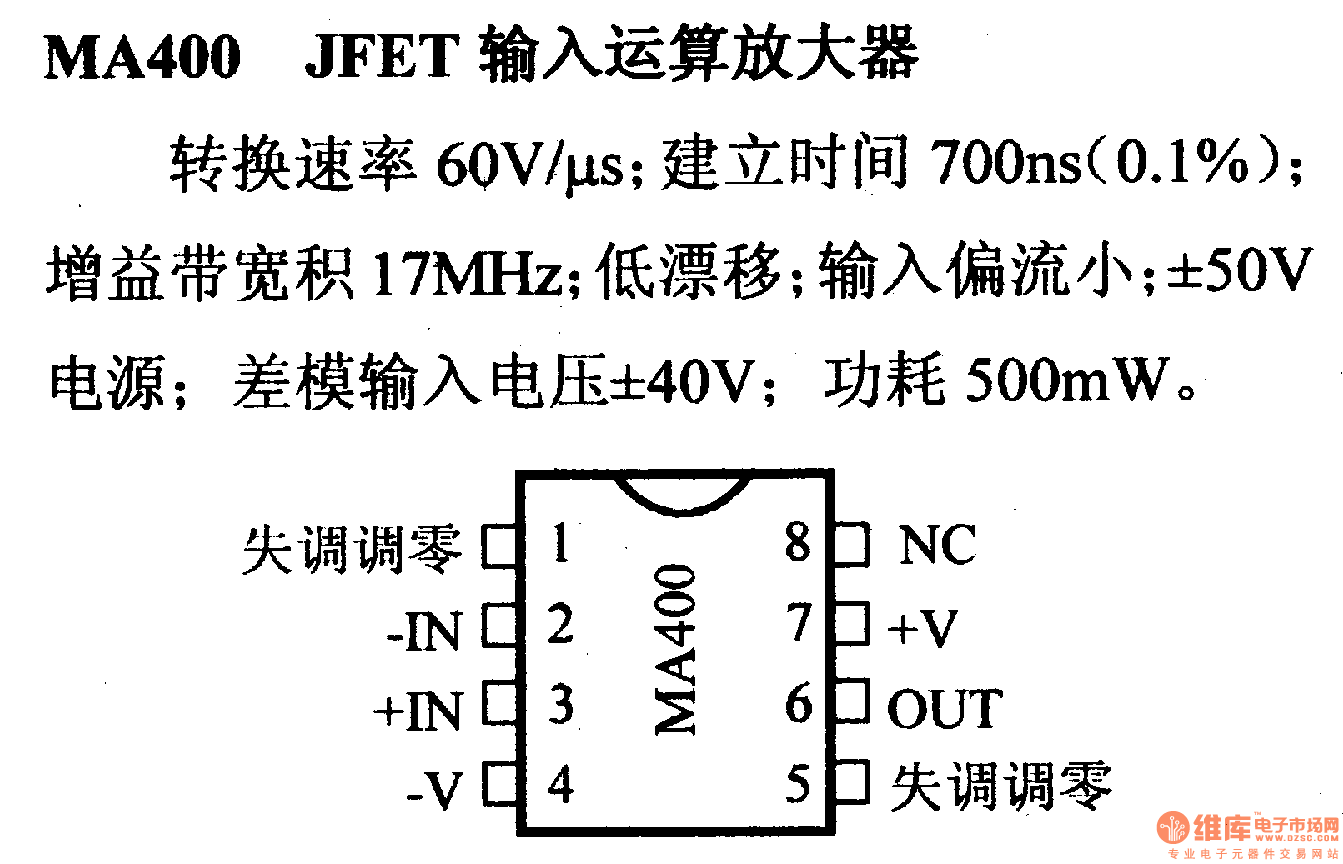

MA400 JFET input op amp and its main pin characteristics

Published:2012/12/24 1:55:00 Author:Ecco | Keyword: JFET, input op amp , main pin , characteristics | From:SeekIC

Conversion rate is 60V/μs; settling time is 700ns ( 0.1% ); Gain Bandwidth Product is 17MHz;low drift; small input bias; ± 50V power supply ; differential-mode input voltage is ± 40V; power consumption is 500mW.
