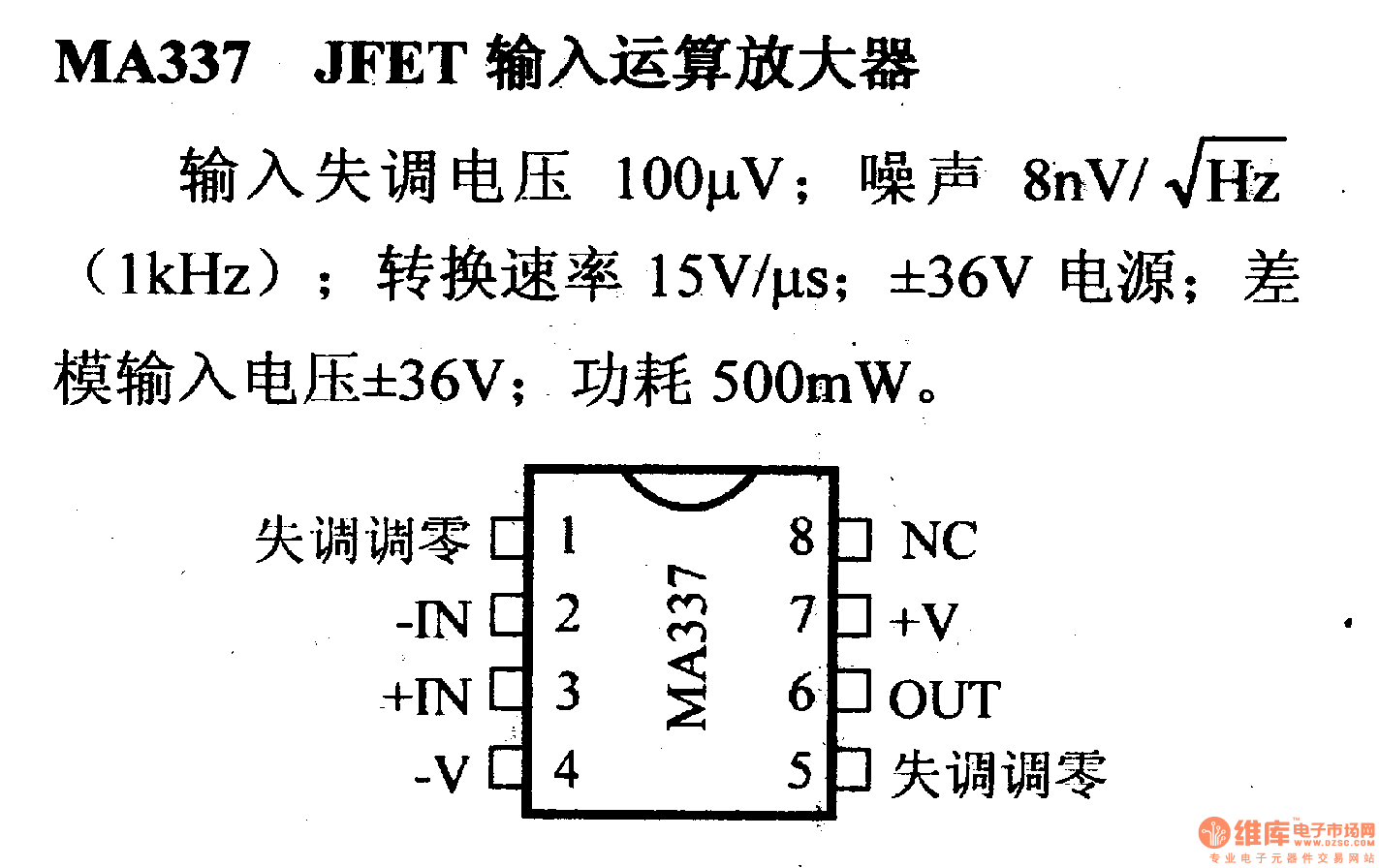

MA337 JFET input op amp and its pin main characteristics

Published:2013/1/16 1:35:00 Author:Ecco | Keyword: JFET input, op amp , pin main characteristics | From:SeekIC

The input offset voltage is 100μV; noise is 8nV / √ ¯ Hz ( 1kHz); conversion rate is 15V/μs; power supply is ± 36V; differential-mode input voltage is ± 36V, the power consumption is 500mW.
