M51304L Microphone amplifier circuit diagram

Published:2011/8/12 4:20:00 Author:Rebekka | Keyword: Microphone amplifier | From:SeekIC

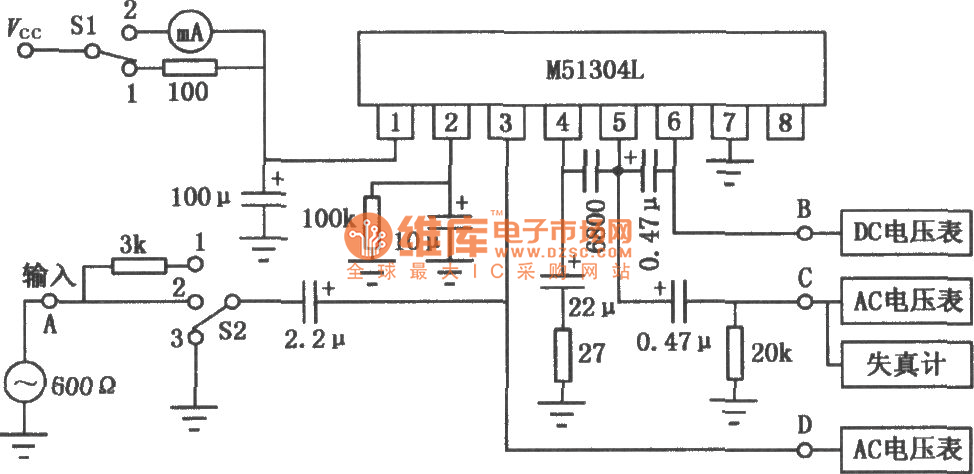

M51304L is microphone amplifier circuit. It uses 8-pin single inline package. The power supply voltage is 8～15V with low noise. There is automatic gain control (AGC) circuit inside. You can adjust the sensitivity of agc though external resistor. It is suitable for the microphone amplifier of micro recorder. The typical application circuit diagram is shown as below.
