Low_voltage_compandor

Published:2009/7/24 0:01:00 Author:Jessie | From:SeekIC

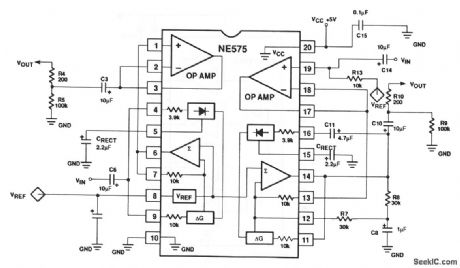

This single-chip circuit operates on voltages from 3 V to 7V, with a reference voltage (pin 8) of 100 mV for 0 dB. There is one dedicated summing op amp per channel, and two extra uncommitted op amps. The output can drive 600Ω.
