Low_phase_shift_IF_limiter

Published:2009/7/23 21:26:00 Author:Jessie | From:SeekIC

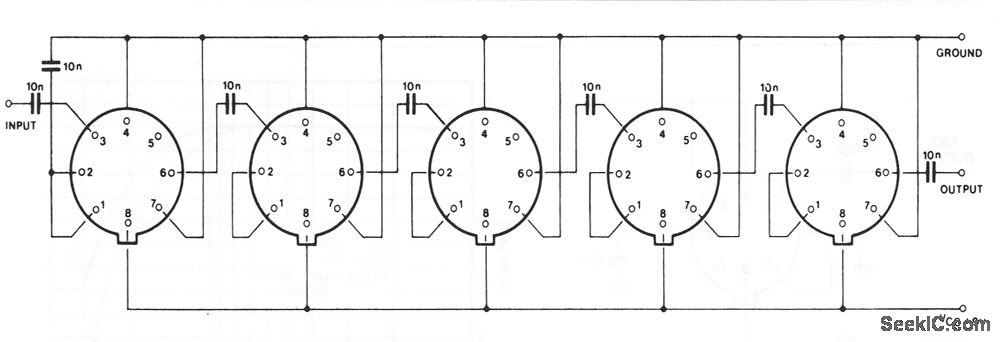

The SL532 shown here is used for wide-bandwidth limiting IF strips.With the values shown, the input signal for full limiting is 300 μV (rms)(-57 dBm), the output is limited to 1 Vpp, with a phase shift of ±3%.
