Low_noise_high_gain_amplifier

Published:2009/7/23 21:31:00 Author:Jessie | From:SeekIC

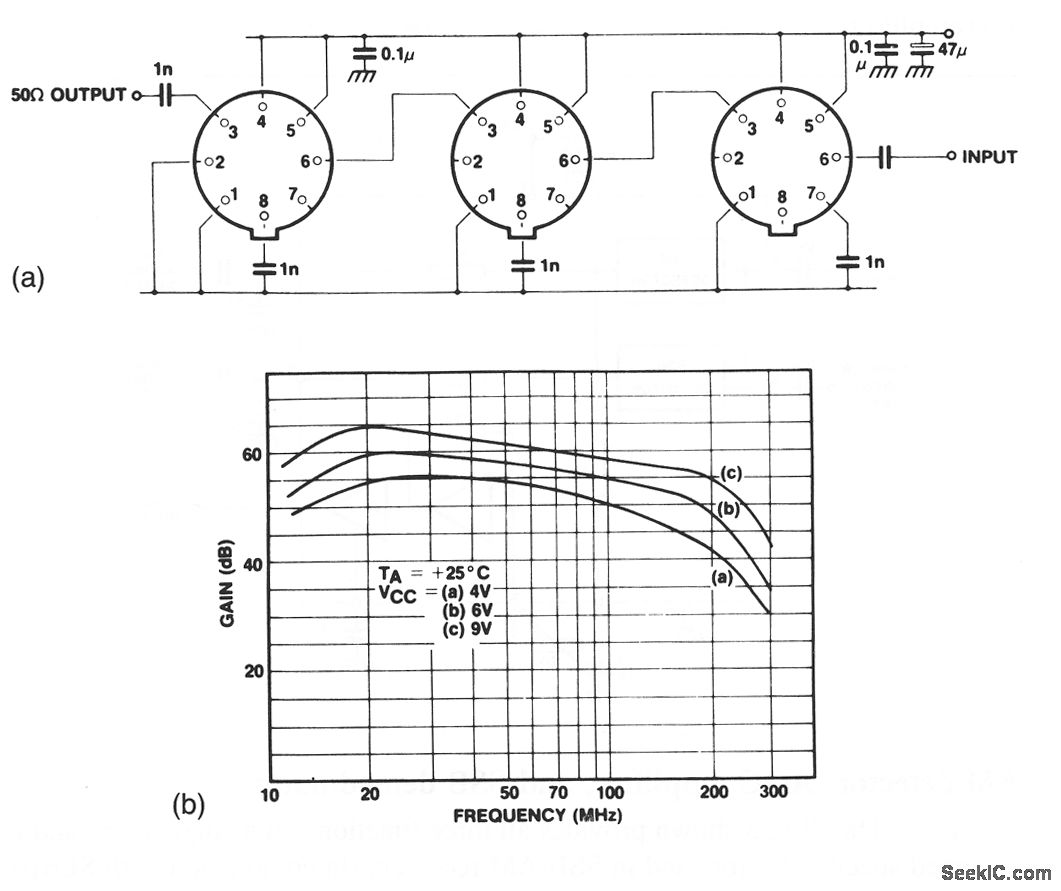

Figure 2-7A shows an SL560 used as a direct-coupled-coupled high-gain amplifier. Figure 2-7B shows the typical frequency response.
