Low_noise_AF_preamplifier

Published:2009/7/20 2:36:00 Author:Jessie | From:SeekIC

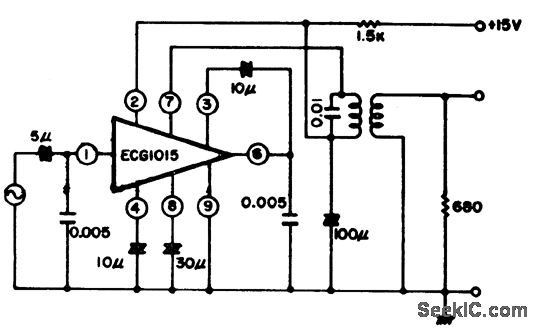

Low-noise AF preamplifier. The preamplifier provides 0.9 volts output at 1 kHz witha 2 mV input. ECG1015 is a hybrid module (courtesy GTE Sylvania Incorporated).
