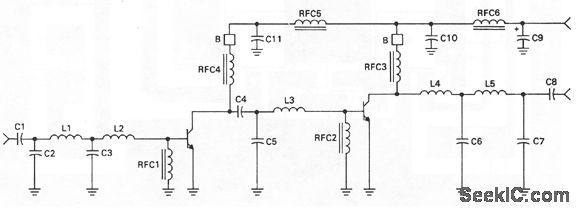

Low_cost_VHF_broadband_amplifier_160_to_174_MHz

Published:2009/7/23 23:24:00 Author:Jessie | From:SeekIC

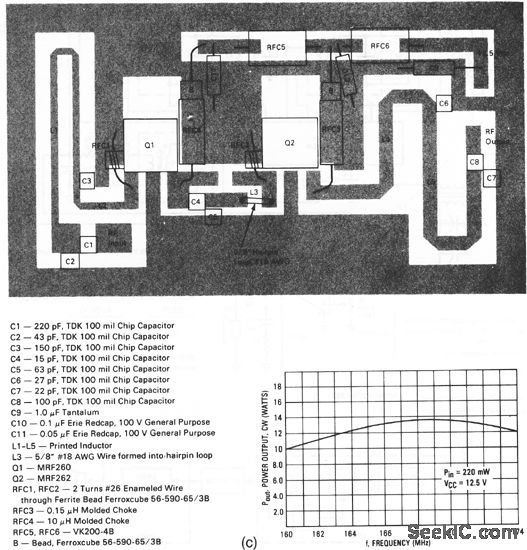

This circuit has a power gain of about 18 dB overthe frequency range.Figure 2-62B shows the board layout and components list, and Fig,2-62C showsthe power output Versus frequency.
