Low_cost_VHF_broadband_amplifier_136_to_160_MHz

Published:2009/7/23 23:23:00 Author:Jessie | From:SeekIC

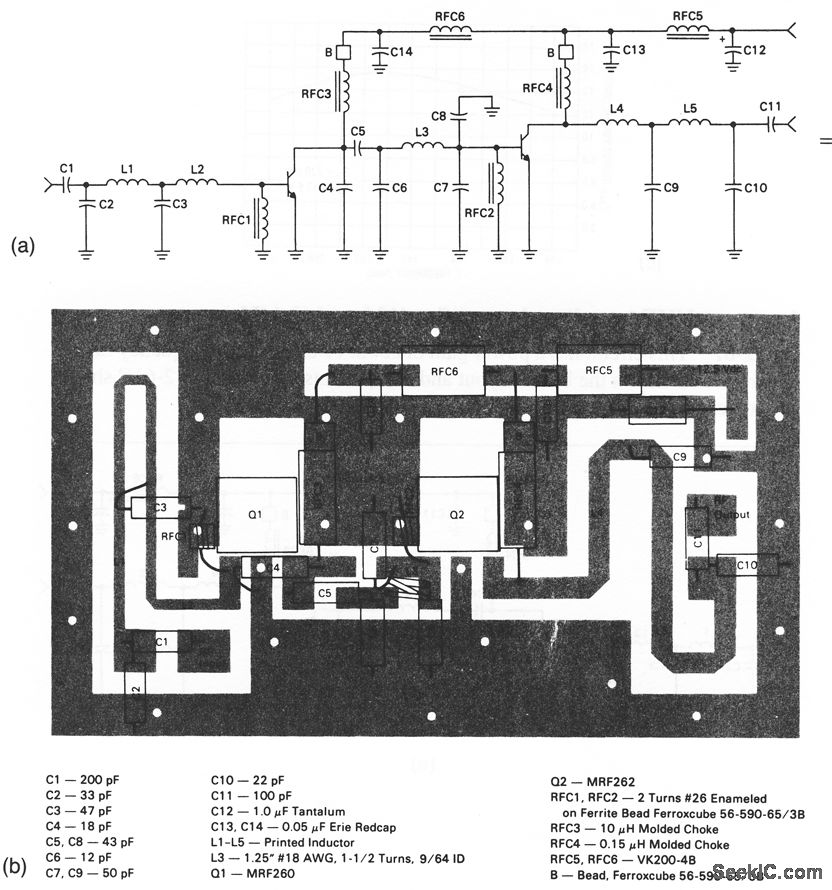

This circuit has a power gain of about 19 dB over the frequency range.Figure 2-61B shows the board layout and components list, and Fig. 2-61C shows the power output versus frequency.
