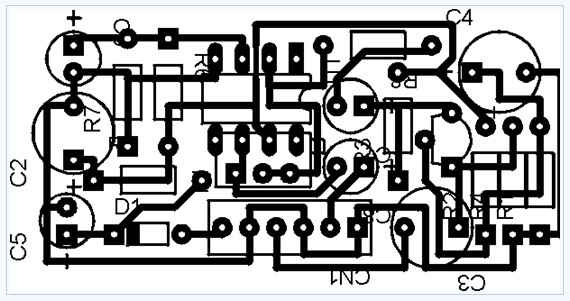

Low Impedance Microphone Amplifier electronic circuit diagram

Published:2013/4/1 3:20:00 Author:Ecco | Keyword: Low Impedance, Microphone Amplifier | From:SeekIC

The circuit is a microphone amplifier for use with low impedance (~200 ohm) microphones. It will work with stabilized voltages between 6-30VDC. If you don't build the impedance adapter part with T1, you get a micamp for higher impedance microphones. In this case, you should directly connect the signal to C7.
