Linear_amplifier_using_wideband_hybrids

Published:2009/7/23 22:50:00 Author:Jessie | From:SeekIC

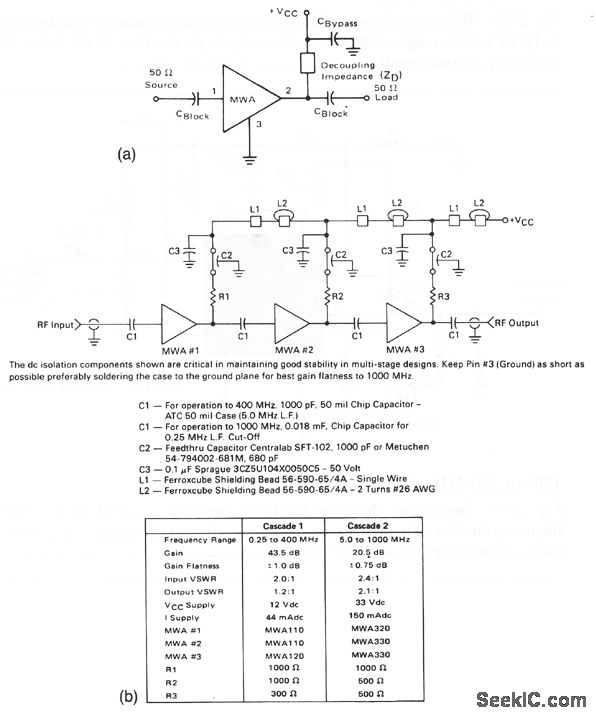

This circuit shows three wideband hybrid amplifiers cascaded to form a linear amplifier. Figure 2-48B shows the hybrid amplifier connections. As shown by the table, the circuit is capable of operation from 0.25 to 400 MHz (or 5 to 1000 MHz), depending on the selection of components and power sources.
