LOW_VOLTAGE_COMPANDER

Published:2009/7/7 1:36:00 Author:May | From:SeekIC

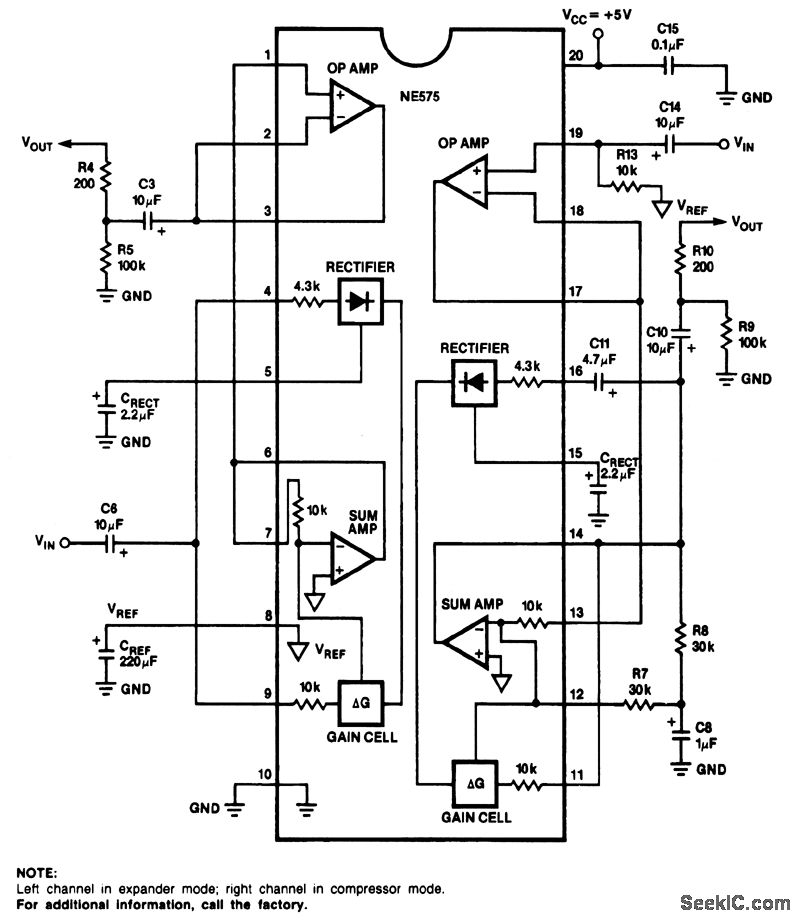

The NE575 is a dual-gain control circuit designed for low voltage applications. The NE575's channel 1 is an expander, while channel 2 can be configured either for expander, compressor,or automatic level controller (ALC) applications.
