LOW_Q_22_MC_I_F_DESIGN

Published:2009/7/16 2:59:00 Author:Jessie | From:SeekIC

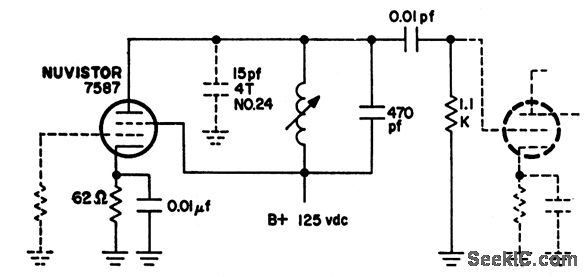

Article gives detailed design procedure, with example worked out for 480-kc bandwidth and gain of 92 db. For high-Q stage, 1.1 K load resistor is changed to 12K.-J. F. Klarl, A Systematic Approach For Designing IF Amplifiers, EEE, 12:3, p 40-44.
