LOW_POWER_BINARY_TO_10SUPn_SUP_GAIN_LOW_FREQUENCY_AMPLIFIER

Published:2009/7/1 1:55:00 Author:May | From:SeekIC

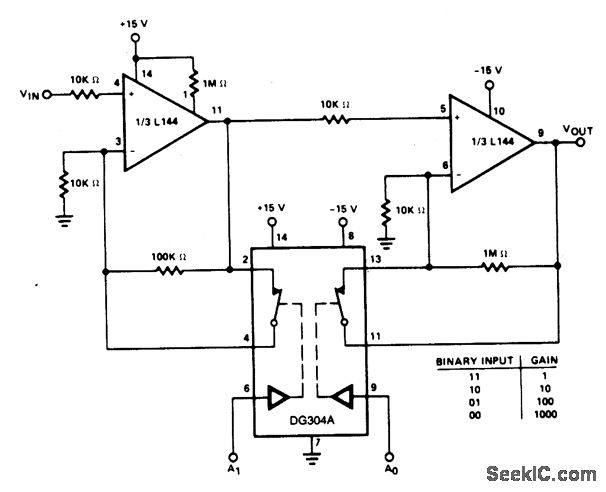

Gain increases by decades as the binary input decreases from 1,1 to 0,0. Minimum gain is 1 and maximum gain is 1000, Since the switch is static in this type of amplifier the power dissipation of the switch will be less than a tenth of a milliwatt.
