LOW_NOISE_PHONO_PREAMP

Published:2009/7/9 2:57:00 Author:May | From:SeekIC

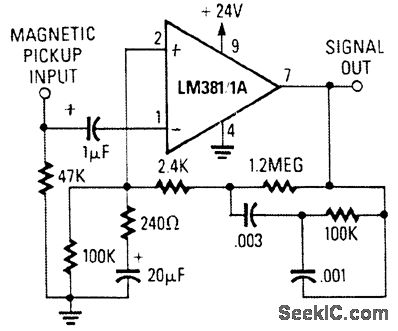

This circuit uses an LM381/1A as a low-noise phono preamp. The feedback network provides RIAA compensation.
