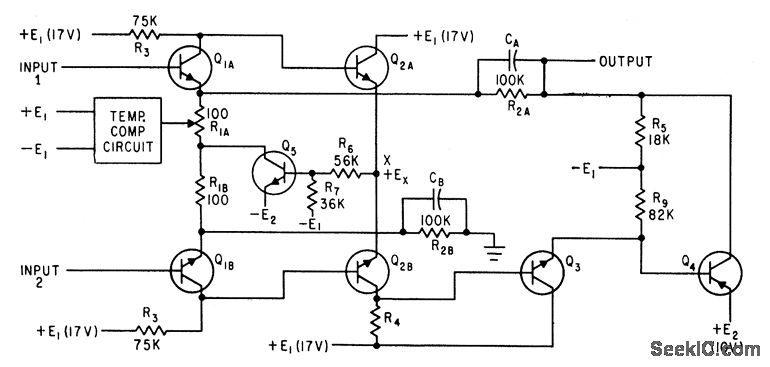

LOW_DRIFT_WITHOUT_CHOPPER

Published:2009/7/14 6:05:00 Author:May | From:SeekIC

Developed for airborne or missile telemetry. Gain is adjustable. Has wide frequency response, high common-mode rejection factor, and high input impedance, along with gain stability of 0.15% over wide temperature range.-R. D Middlebrook and A. D. Taylor, Differential Amplifier with Regulator Achieves High Stability, Low Drift, Electronics, 34:30, p 56-59.
