LOW_COST_30_W

Published:2009/6/28 23:25:00 Author:May | From:SeekIC

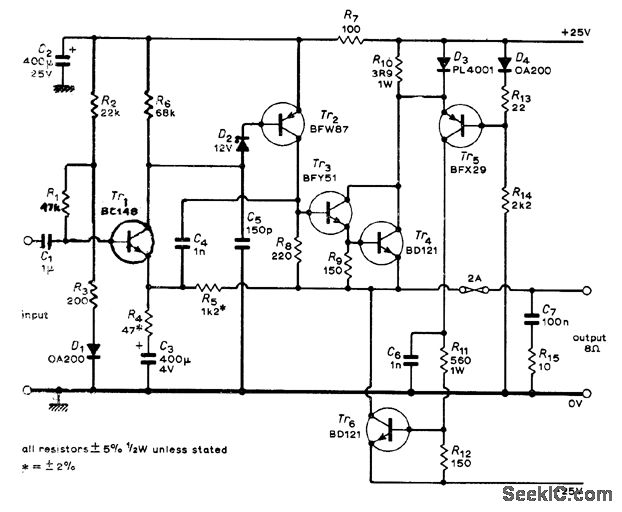

Economical compromise gives 30 W into 8-ohm load at 0.1% distortion (mainly second harmonic) and hum level of -50 dBW. Article covers design and operation of cir, cuit in detail.-P. L, Taylot, Audio Power Am-plifier, Wireless Wolld, June 1973, p 301-302,
