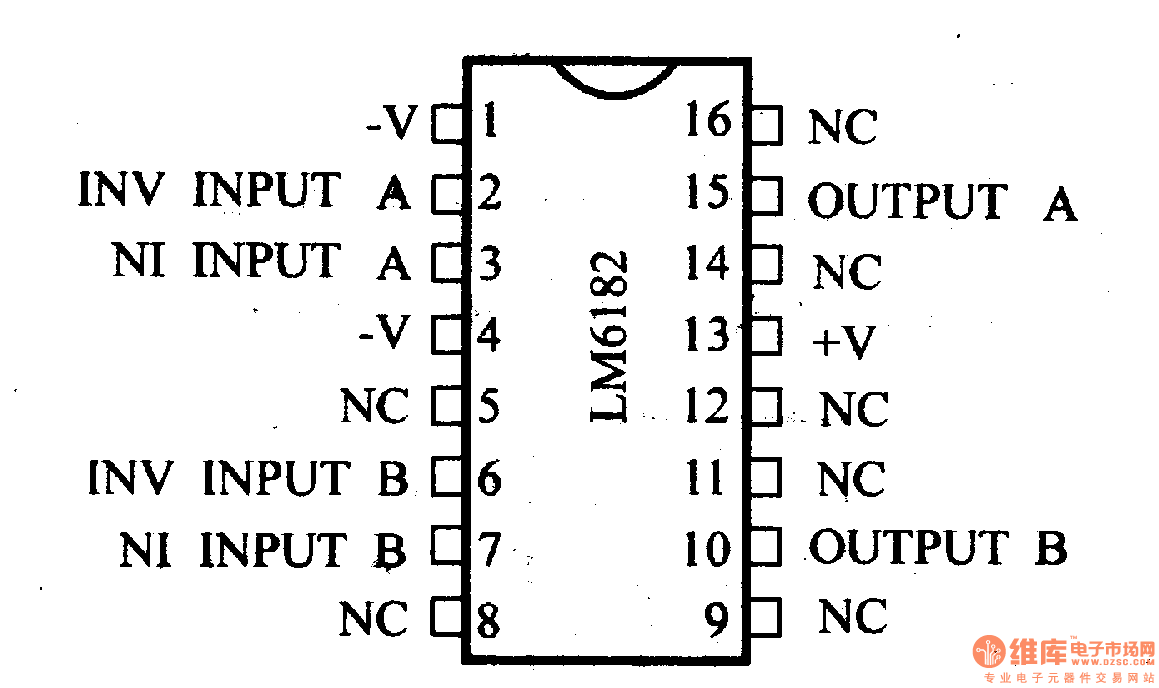

LM6182 current feedback amplifier and its pin main characteristics

Published:2013/1/10 2:37:00 Author:Ecco | Keyword: current feedback amplifier, pin main characteristics | From:SeekIC

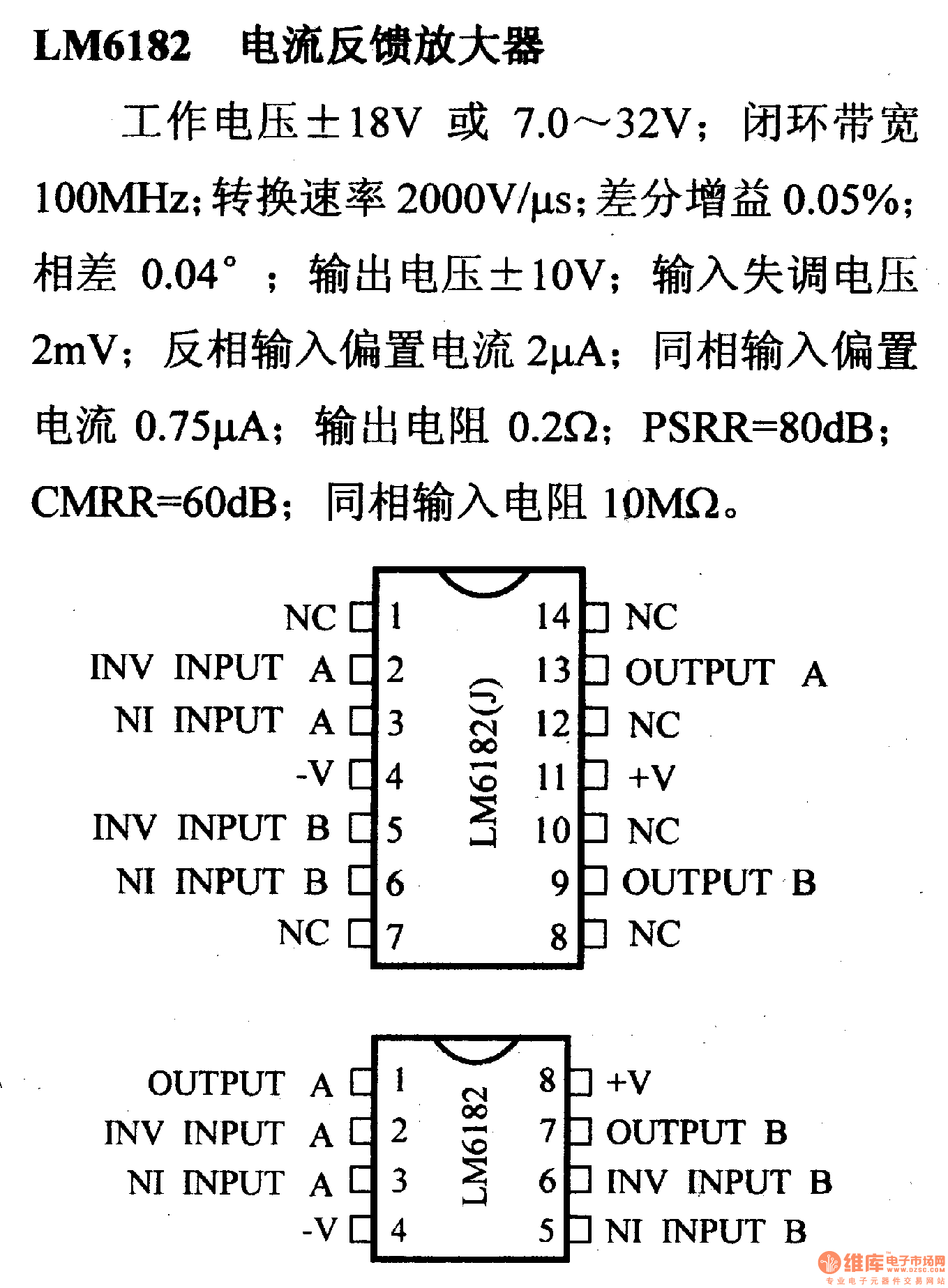

Operating voltage range is ± 18V or 7.0 ~32V; closed-loop bandwidth is 100MHz; conversion rate is 2000V/μs; differential gain is 0.05%; difference is 0.04 °; output voltage is ± 10V; input offset voltage is 2mV; inverting input bias current is 2μA; noninverting input bias current is 0.75μA; output resistance is 0.2Ω; PSRR = 80dB; CMRR = 60dB; noninverting input resistance is 10MΩ.
