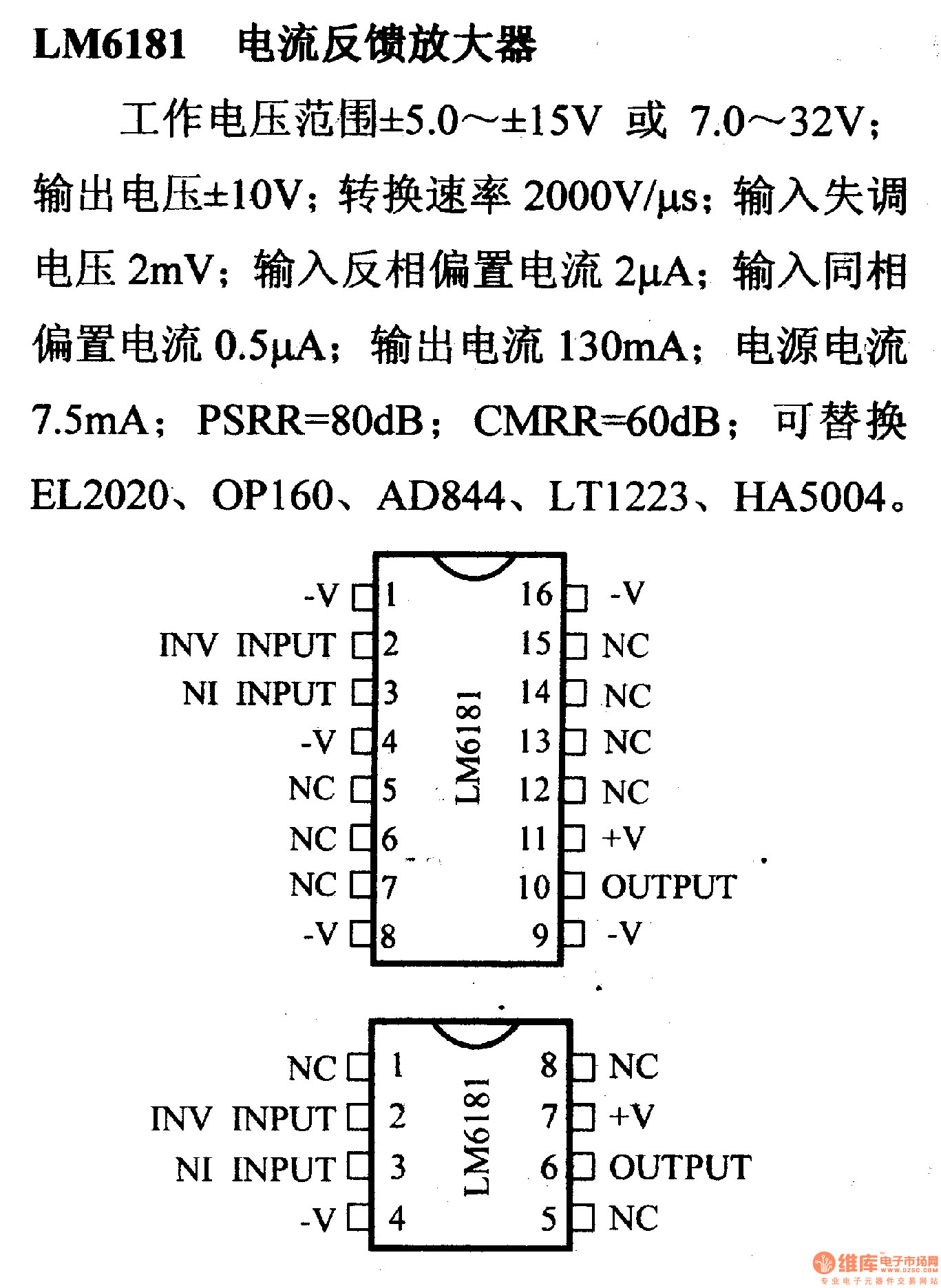

LM6181 current feedback amplifier and its pin main characteristics

Published:2013/1/16 1:32:00 Author:Ecco | Keyword: current feedback amplifier , pin main characteristics | From:SeekIC

Operating voltage range is ± 5.0 ~ ± 15V or 7 ~~ 32V; output voltage is ± 10V; conversion rate is 2000mV/μs; input offset voltage is 2mV; reversed input bias current is 2μA; input in-phase bias current is 0.5μA; Output Current is 130mA; power current is 7.5mA; PSRR = 80dB; CMRR = 60dB; it can replace EL2020, OP160, AD844, LT1223 and HA5004.
