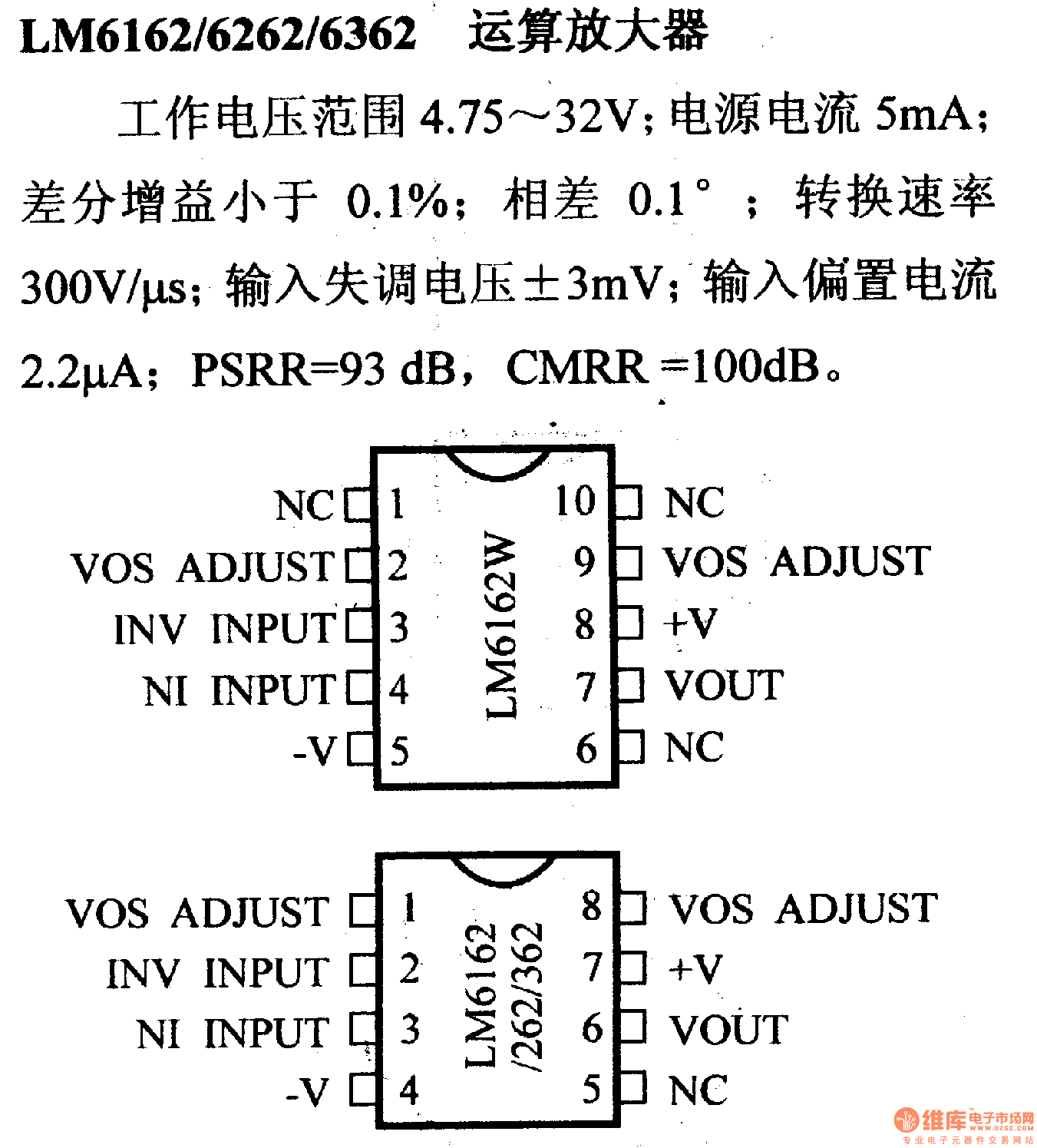

LM6162/6262/6362 operational amplifier and its pin main characteristics

Published:2012/12/27 0:21:00 Author:Ecco | Keyword: operational amplifier , pin main characteristics | From:SeekIC

4.75 to 32V operating voltage range; 5mA supply current; differential gain is less than 0.1%; difference is 0.1 °; 300V/μs conversion rate; ±3mV input offset voltage; 2.2 μA input bias current; PSRR = 93dB.CMRR = 100dB.
