LM4911 Different power conduction time recommended circuit diagram

Published:2011/8/16 22:09:00 Author:Rebekka | Keyword: MOSFET, Different power , conduction time | From:SeekIC

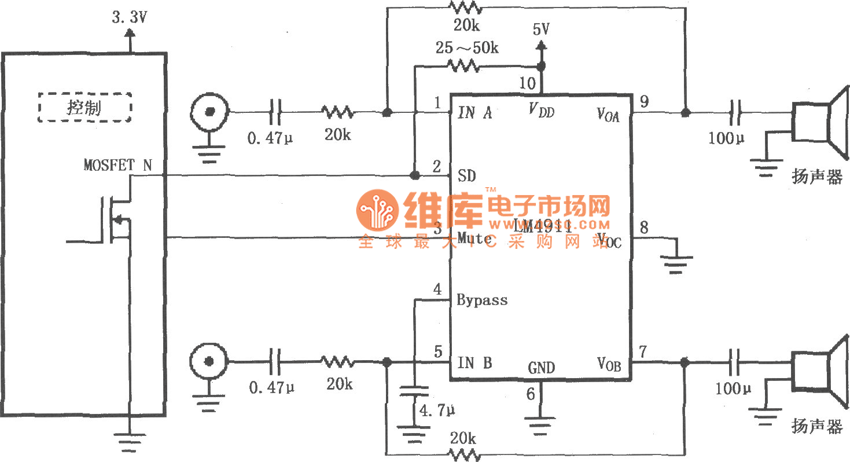

LM4911 Different power conduction time recommended circuit diagram is shown as below. The circuit uses a controller. The MOSEFT tube of the controller controls the LM4911 shutdown control (SD) end to achieve on-time regulation of the amplifier.
