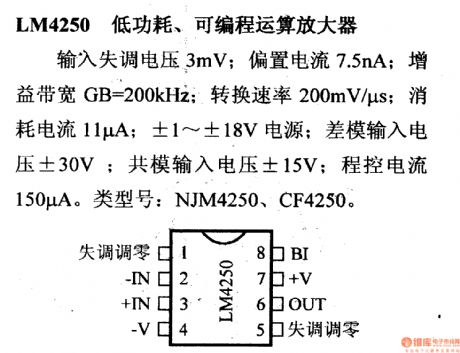

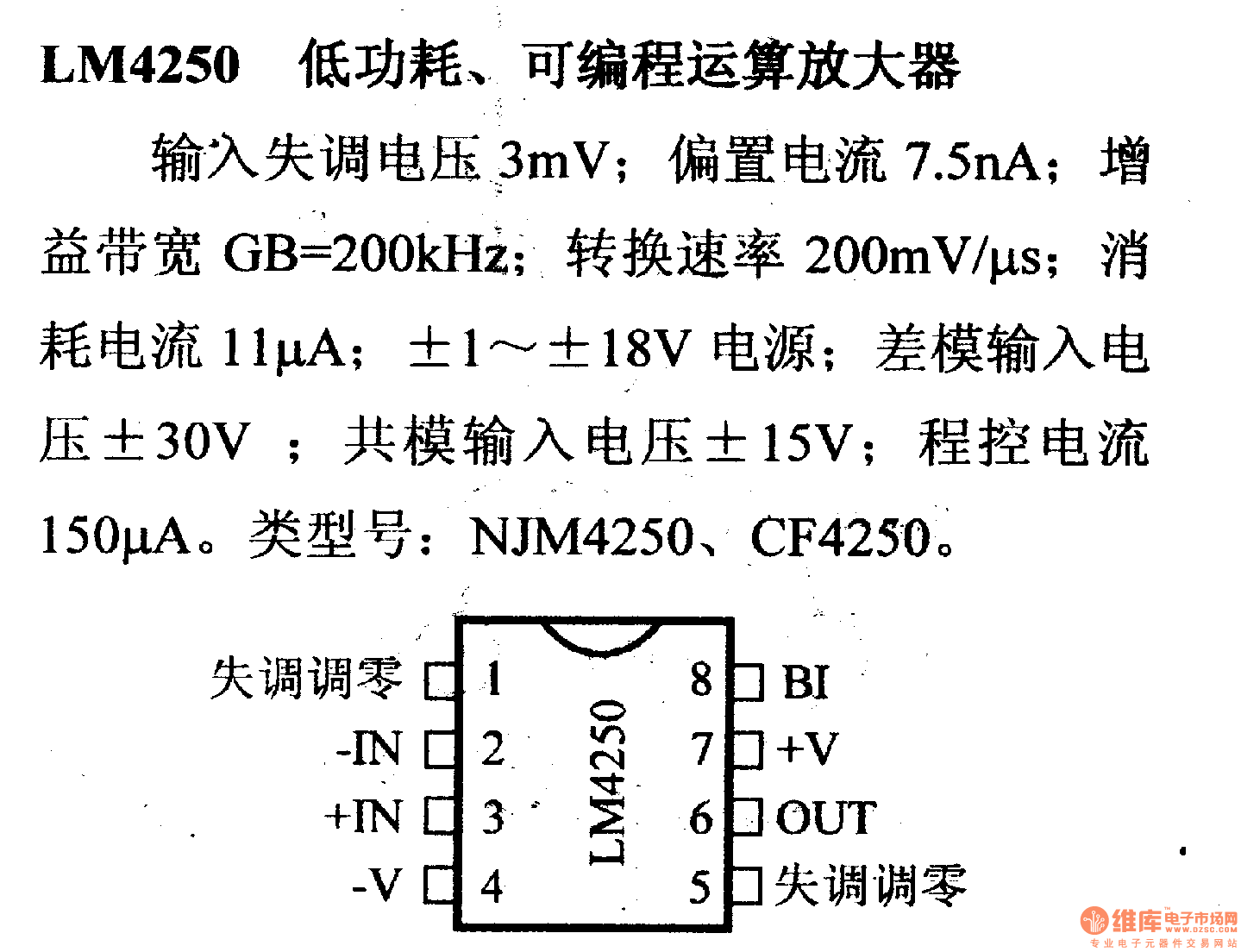

LM4250 low-power programmable amplifier and its pin main characteristics

Published:2013/1/5 1:27:00 Author:Ecco | Keyword: low-power, programmable amplifier, pin main characteristics | From:SeekIC

3mV Input offset voltage; 7.5nA bias current; gain bandwidth GB = 200kHz; 200mV/μs conversion rate; 11μA current consumption; ± 1 to ± 18V power supply; ± 30V differential-mode input voltage; ± 15V common-mode input voltage; 150μA programmable current. Type number: NJM4250.CF4250.
