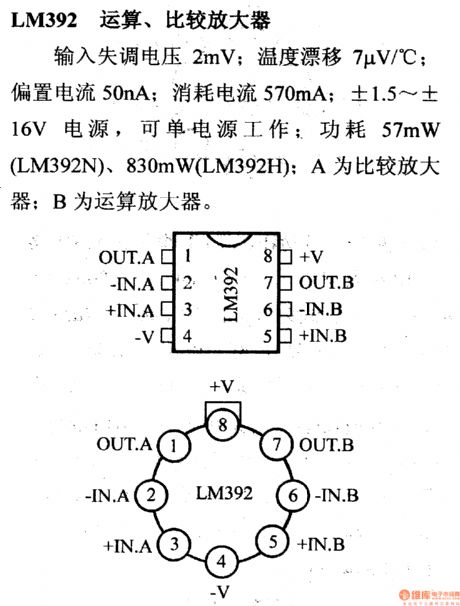

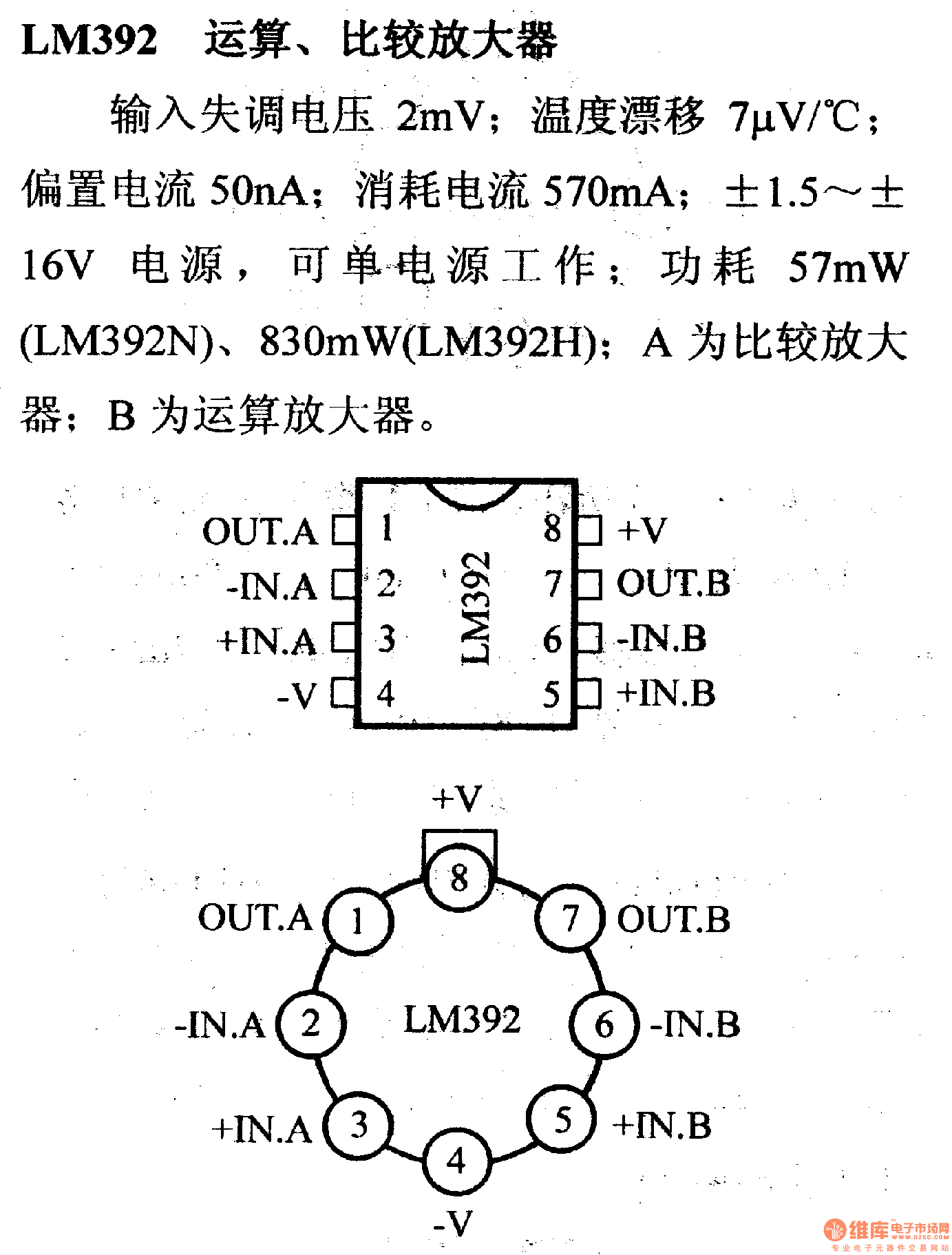

LM392 comparison amplifier and its pin main characteristics

Published:2013/1/5 1:06:00 Author:Ecco | Keyword: comparison amplifier , pin main characteristics | From:SeekIC

2mV input offset voltage; 7μV / ℃ temperature drift; 50nA bias current; 570mA current consumption; ± 1.5 to ± 16V power supply, and it can be a single power supply; 57mW ( LM392N ) power consumption, 830mW ( LM392H ) power consumption; A is a comparison amplifier; B is the operational amplifier.
