LINE_OPERATED_AMPLIFIER

Published:2009/7/5 23:52:00 Author:May | From:SeekIC

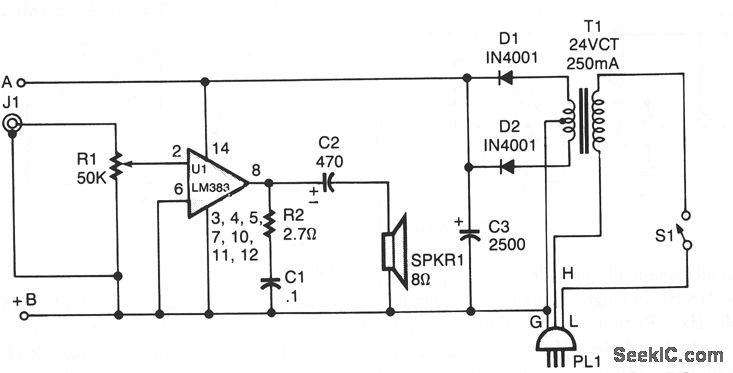

T1 isolates the unit from the line, and has a 24-V, center-tapped secondary. The output of the transformer is rectified by diodes D1 and D2 and filtered by capacitor C3 to provide 15 to 18 Vdc. The LM383 has built-in protection against speaker shorts.
