LEVEL_SHIFTING_ISOLATION_AMPLIFIER

Published:2009/6/24 21:47:00 Author:May | From:SeekIC

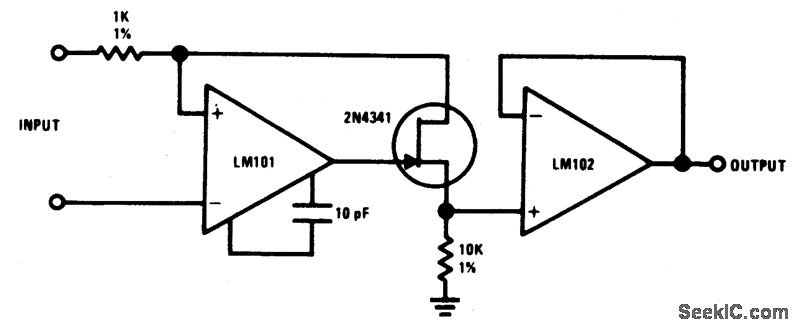

The 2N4341 JFET is used as a level shifter between two op amps operated at different power supply voltages. The JFET is ideally suited for this type of application because ID=IS.
