LASER_ACTIVATED_RELAY_WITH_AMPLIFIER

Published:2009/7/14 11:30:00 Author:May | From:SeekIC

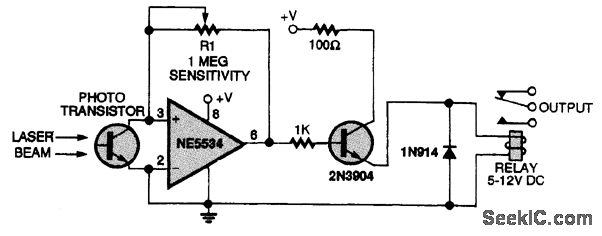

A low-noise amplifier is used in conjunction with a phototransistor to allow higher sensitivity than the detector alone would provide.
