LA6510-geomagnetic correction output amplifier integrated circuit

Published:2011/5/4 22:44:00 Author:Nicole | Keyword: geomagnetic correction, output amplifier | From:SeekIC

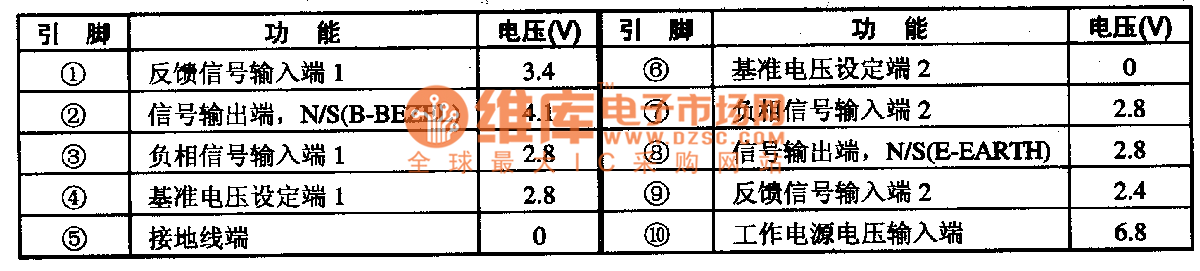

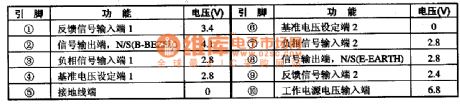

LA6510 is a geomagnetic correction output amplifier integrated circuit which is produced by Sanyo, it is used as geomagnetic correction singal amplifier in new type large screen, large screen PIP and color TV. 1, Function and feature LA6510 integrated circuit contains two-way same function amplifier circuit, reference voltage steady voltage setting circuit and other assist functional circuit. 2, Pin function and data LA6510 integrated circuit adopts 10-pin package, the pin function and data of this integrated circuit is shown in chart1.
