L78LRO5-the regulated integrated circuit with function of reset

Published:2011/7/12 3:25:00 Author:Borg | Keyword: regulated integrated circuit, reset | From:SeekIC

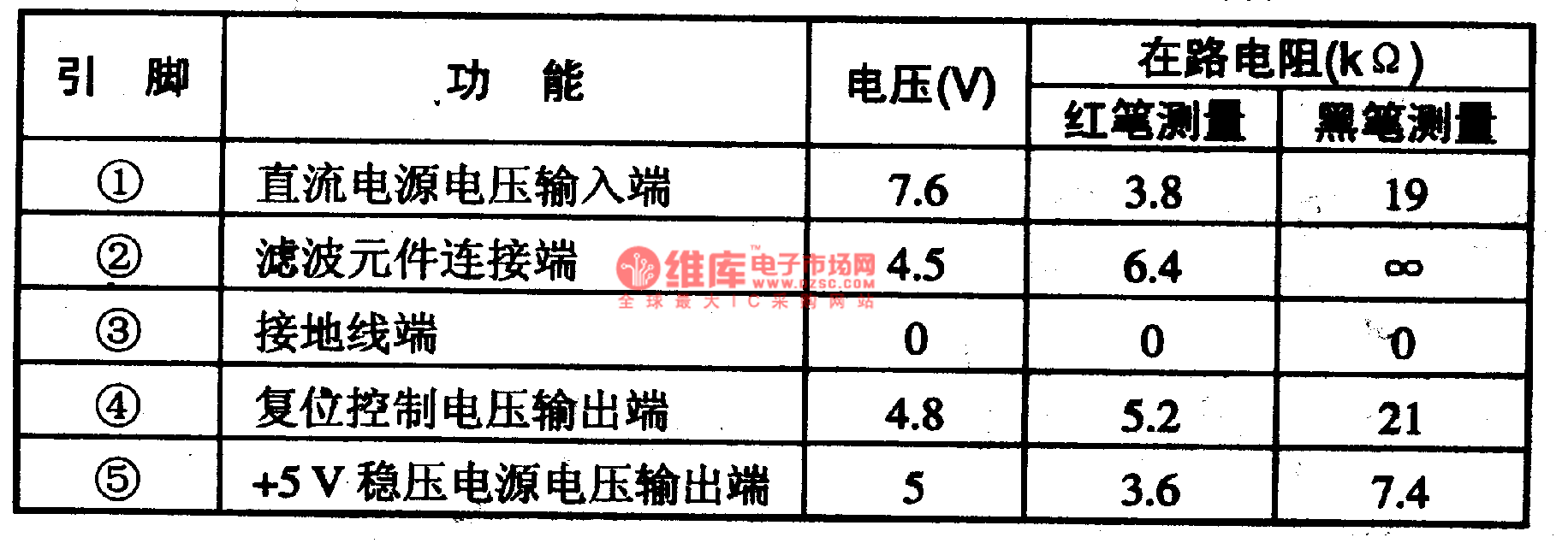

L78LRO5 is a regulated integrated circuit with function of reset, which is widely used in all types of large screen color TV sets.1.function featuresL78LRO5 consists of the reset circuit, +5V power supply regulated circuit and so on.2.pin functions and dataWhen L78LRO5 is installed in Sony Kv-K29MFl TV sets, its pin functions and data are listed in table 1-1.Notes: L78LRO5 can be replaced by L78LRO5D, L78MO5A, L78LR05-/mA, L78MRO5 and L78MRO5FA directly. Table 1-1. the pin functions and data of L78LRO5
