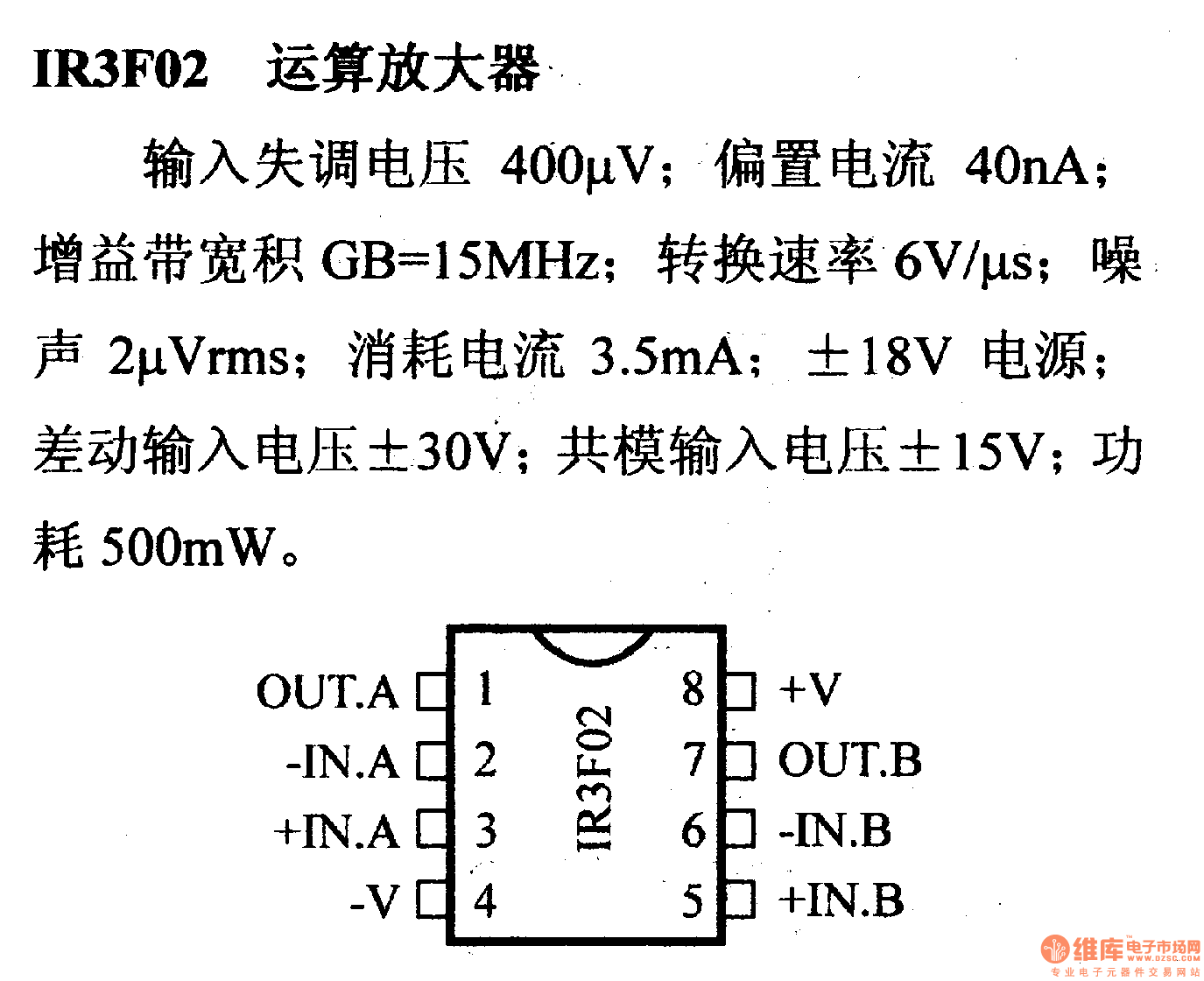

Key pin features of IR3F02 operational amplifier

Published:2011/11/4 3:05:00 Author:Ecco | Keyword: Key pin features , operational amplifier | From:SeekIC

Input offset voltage is 400μV; Bias current is 40nA; Gain-bandwidth product GB=15MHz; Switching rate is 6V/μS; Noise is 2μVms; Current consumption is 3.5mA; it uses ±18V power source; Differential motion input voltage is ±30V; Syntype input voltage is ±15V; Power loss is 500mW.
