JFET_WIDEBAND_AMPLIFIER

Published:2009/7/10 0:37:00 Author:May | From:SeekIC

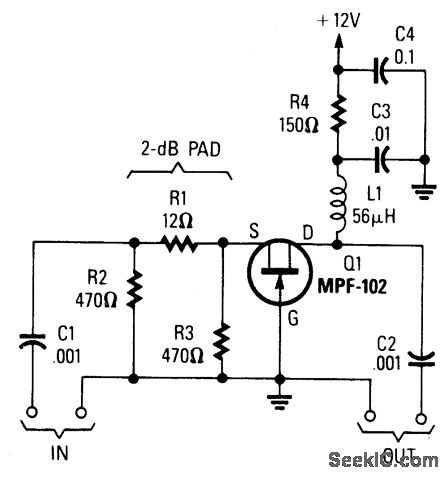

Using an MPF102 JFET, this circuit has a 50-Ω input impedance。Load impedance should be about 470Ω. A 3∶1 matching transformer can be used to get the impedance back to 50 Ω,This circuit will showabout 6- to 8-dB gam at VHF frequencies.
