JFET_BIPOLAR_CASCODE_VIDEO_AMPLIFIER

Published:2009/7/1 1:57:00 Author:May | From:SeekIC

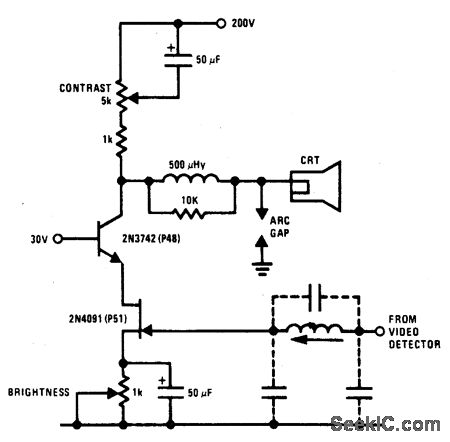

The JFET-bipolar cascade circuit will provide full video output for the CRT cathode drive. Gain is about 90. The cascode configura-tion e liminate s Millercapacitance problems with the 2N4091 JFET, thus allowing direct drive from the video detector. An m-derived filter using stray capacitance and a variable inductor prevents 4.5 MHz sound frequency from being amplified by the video amplifier.
