INVERTING_SUMMING_AMPLIFIER

Published:2009/6/15 2:38:00 Author:May | From:SeekIC

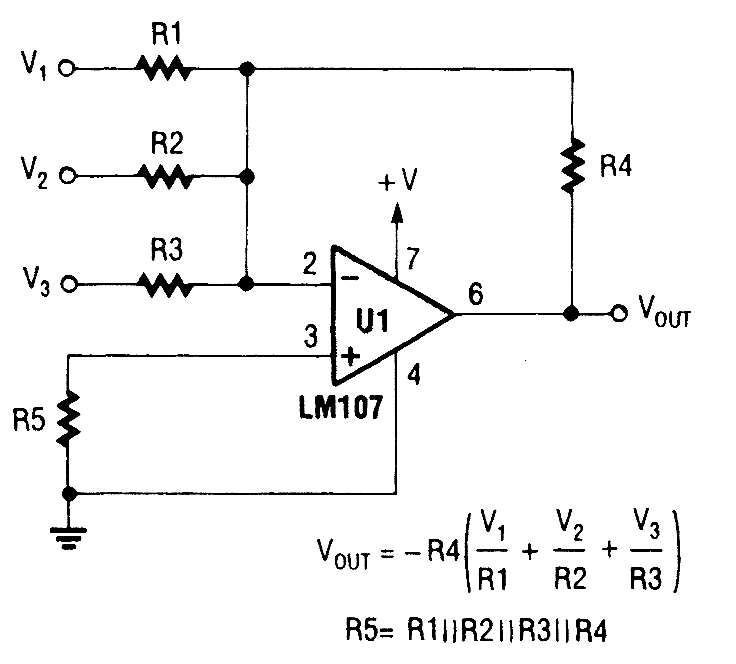

The out put of U1 is the sum of V1, V2, and V3, multiplied by R1/R4, R1/R4, and respectively. R1, R2, R3 are selected as required for individual gains. R4 affects gain of all these inputs.
