Published:2009/7/24 21:13:00 Author:Jessie | From:SeekIC

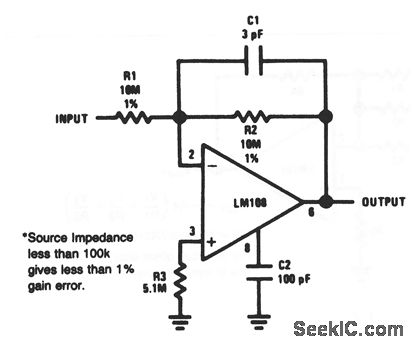

This circuit provides an input impedance of about 10 MΩ. C1 is necessary to provide stabilization feedback. C2 compensates for frequency shift caused by C1.
