Inverting_amplifier_using_half_of_an_ECG947_dual_operational_amplifier

Published:2009/7/19 21:37:00 Author:Jessie | From:SeekIC

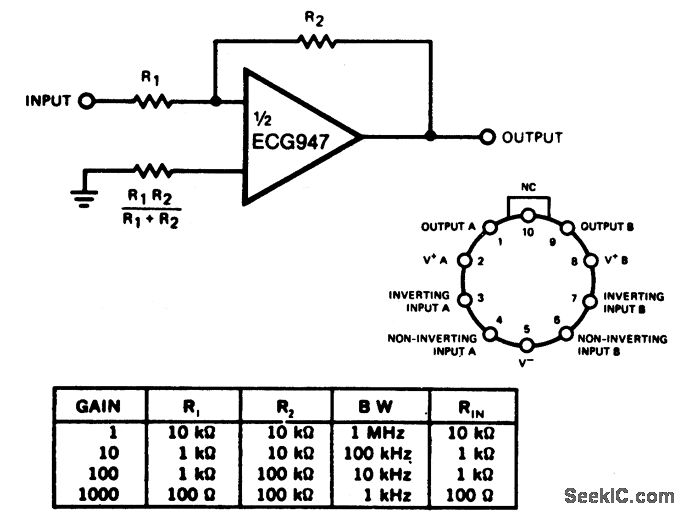

Inverting amplifier using half of an ECG947 dual operational amplifier. The ECG947 is short-circuit protected and requires no external components for frequency compensation (courtesy GTE Sylvania Incorporated).
