Integrated power amplifer application reference circuit

Published:2011/7/13 10:16:00 Author:Nancy | Keyword: Integrated power amplifer, Application reference circuit | From:SeekIC

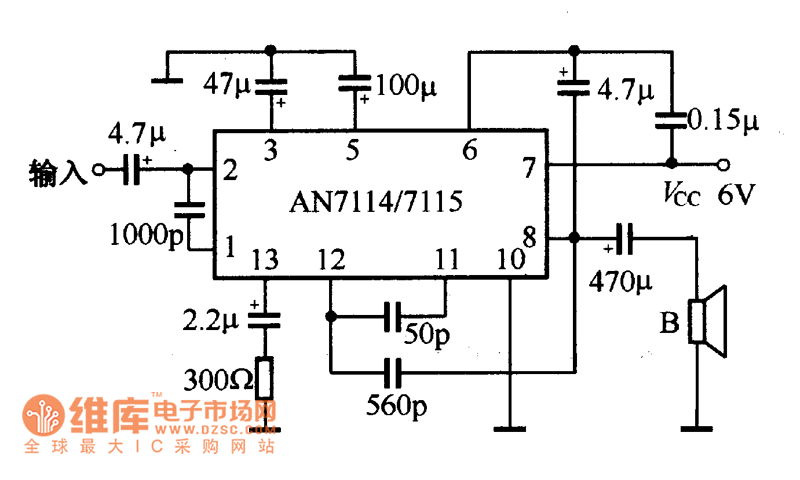

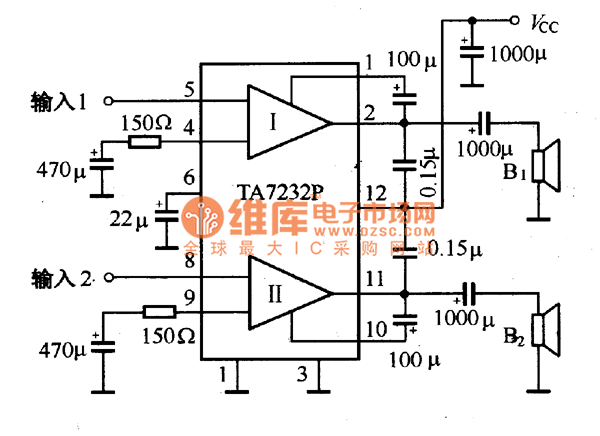

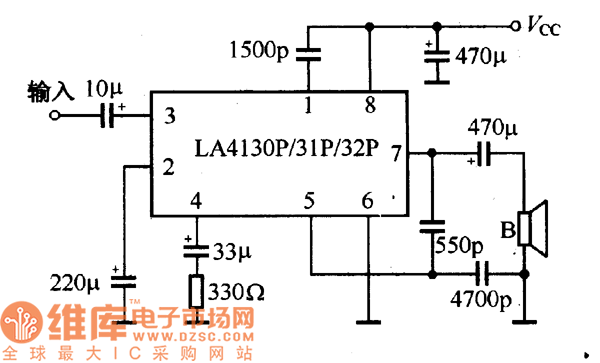

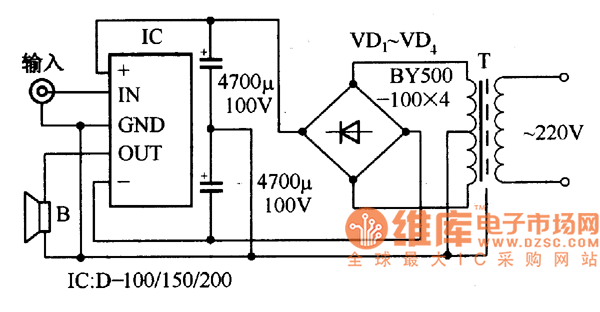

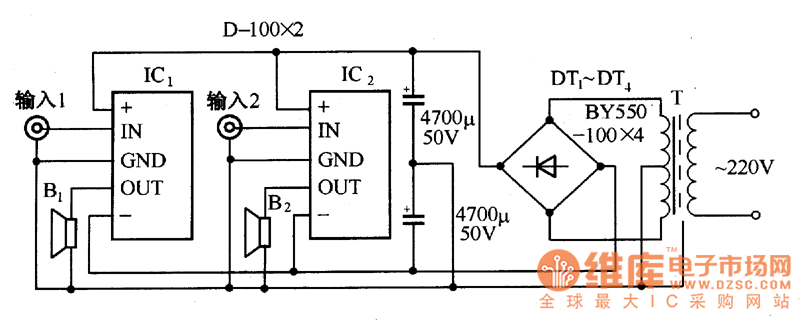

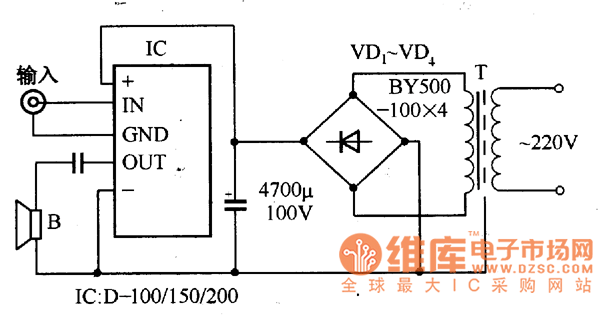

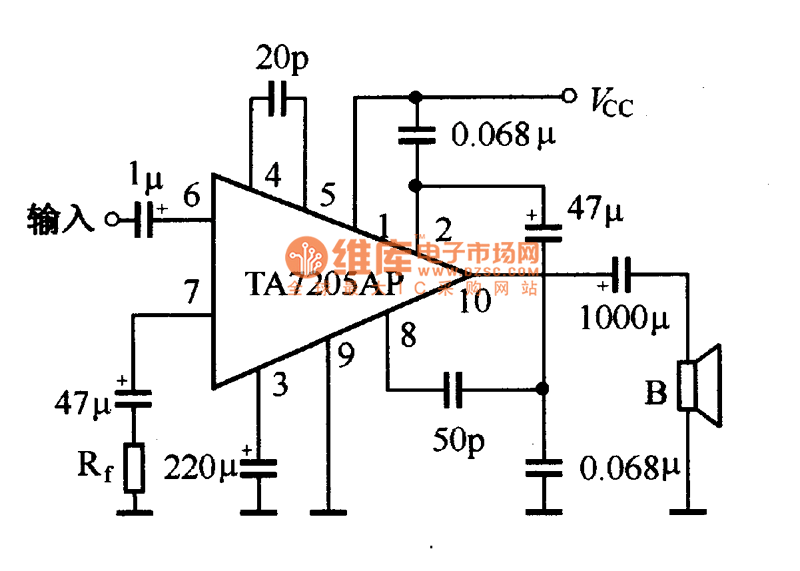

AN-7114/7115 application circuit is shown as above. LA4130P/31P/32P application circuit is shown as above. T A7205AP application circuit HA1377 application circuit TA7232P application circuit Using D series integrated power amplifier can form a mono OTL or OCL audio power amplifier easily, which is shown as the figure. If you use two pieces of D series integrated power amplifier, you can form dual channel power amplifier convenient, which is shown in figure. single power supply OCL power amplifier circuit single power supply OTL power amplifier circuit dual channel OCL power amplifier circuit
