Instrumentation_amplifier_using_two_AD5108_pin_TO99_op_amps

Published:2009/7/19 21:22:00 Author:Jessie | From:SeekIC

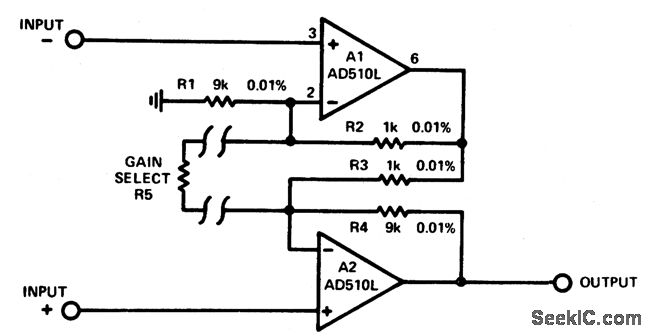

Instrumentation amplifier using two AD5108-pin TO99 op amps．As shown the gain is 10. By adding R5 the gain will increase. For a gain of 10 the frequency response is down 3 dB at 500 kHz. Full output of ±10 volts can be attained up to 1800 hertz(courtesy Analog Devices, Inc.).
