Instrument_amplifier_using_an_AD521_op_amp

Published:2009/7/19 21:23:00 Author:Jessie | From:SeekIC

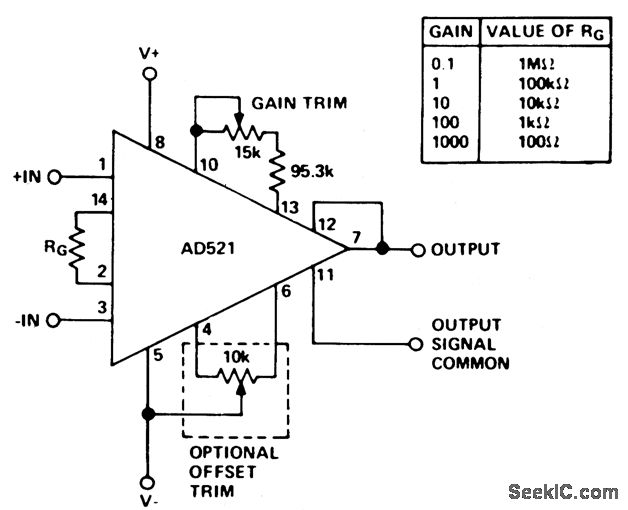

Instrument amplifier using an AD521 op amp. Typical supply is±15 volts (courtesy Analog Devices, Inc.).
