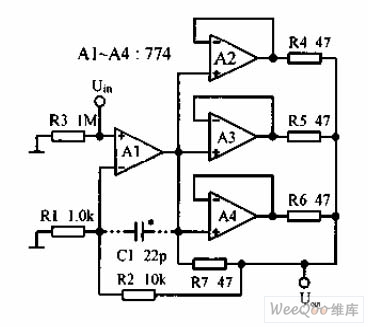

In-phase composite DC amplifier circuit diagram

Published:2011/9/19 1:16:00 Author:Ecco | Keyword: In-phase , composite DC amplifier | From:SeekIC

It uses the four operational amplifier 774 to achieve its parallel work, andit can drive 500Ω loads with goodlinear in the ± 10V range.
