I_F_TUNING_WITH_DELAY_LINE

Published:2009/7/16 2:29:00 Author:Jessie | From:SeekIC

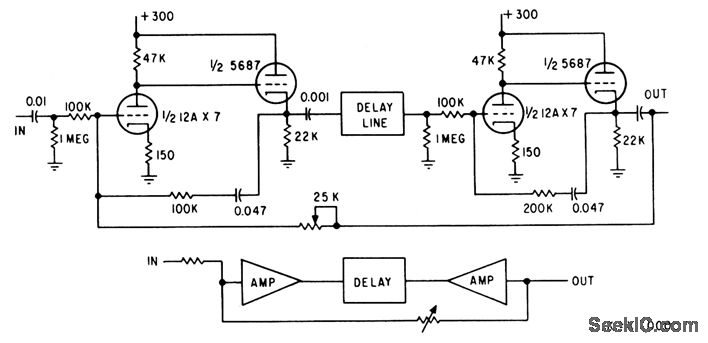

Circuit gives Q of 285 at 500 kc, and is tuned by adjusting delay time. Can be used in any system where high gain, high Q, and stability are needed．-I. F. Barditch, Delay-Line Controls Tuned Amplifier, Electronics, 33:31, p 108．
