ISOLATION_AMPLIFIER

Published:2009/7/10 4:58:00 Author:May | From:SeekIC

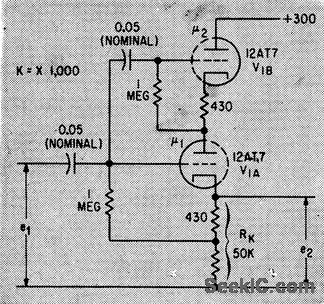

Gain stability and input impedance are much better than conventional cathode follower. Feedback capacitor goes between triode grids, but may also go between grid of V1B and cathode of V1A.-G. M. Davidson and R. F. Brady, Unity-Gain Amplifier Offers High Stability, Electronics, 33:9, p 66-67.
