ISO100 optocoupler linear isolated amplifier circuit diagram

Published:2011/5/17 2:51:00 Author:Ecco | Keyword: optocoupler , linear , isolated amplifier | From:SeekIC

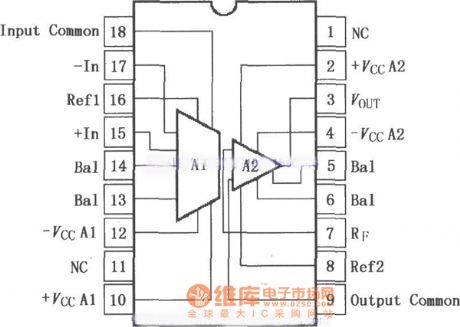

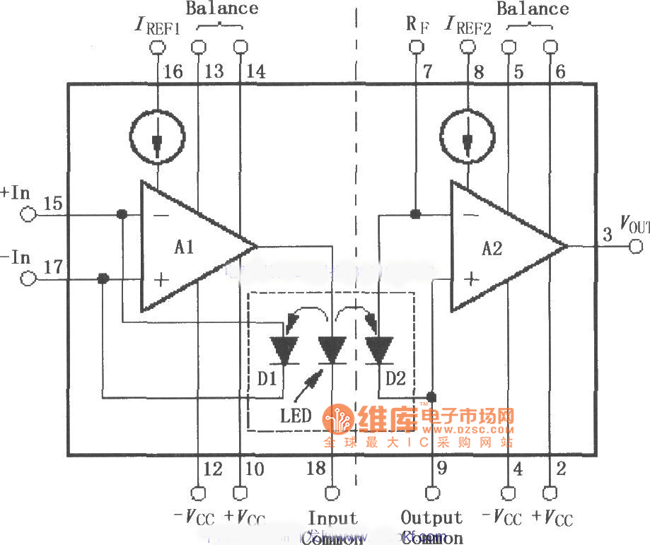

ISO100 is the optocoupler isolation amplifier. It uses LED to produce coupling light, and the negative feedback of coupling light is added to the input end, while the measures on output end of forward transmission can achieve a high precision, linear and long temperature stability. The fine matching coupler and amplifier laser correction ensure the integration of its excellent adjustment performance and low offset error. ISO100 can be used as a current - voltage converter, there is 750V (2500V test voltage) voltage between the input and output ends, it effectively disconnects the the contact of the public current between input and output ends with ultra-low leakage current, the maximum leakage current is 0.3μA when the current is at 240V, 60Hz.
